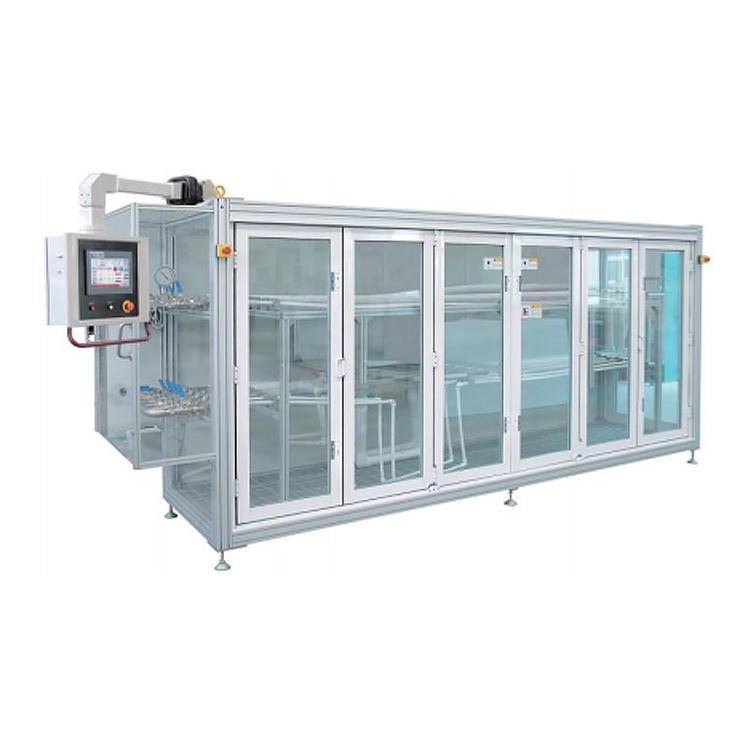

Applicable to the testing of various plastic pipes and pipe fittings assembled in accordance with the requirements of the standard. The pipe system bears a certain internal pressure and alternates between cold and hot temperatures within a specified time. After the specified number of tests, check the pipes and fittings. Leakage or rupture.
Standard:ISO 10508, ISO 15874, ISO 15875,ISO 15876,ISO 15877,EN 12293, ASTM F 1335-98 and the equivalent.
Specification:
Model | KS-CT |
Max. pressure | 0.4-1.2MPa |
Pressure control accuracy | ±0.05MPa |
Number of test stations | 6, can be customized |
Alternation time between hot water and cold water | ≤1 min |
Cycle period | 300 ~ 1200s |
Number of cycles | 1 ~ 10,0000 adjustable |
Cold water temperature range | 15℃ ~ R.T adjustable |
Hot water temperature range | R.T ~ 95℃(selectable) |
Temperature control accuracy(cold water) | ±2℃ |
Temperature control accuracy(hot water) | ±1℃ |
Temperature display error | 1℃ |
Max.total cross-sectional dim. Of all | 4200mm² or 6200mm² |
Water flow accuracy | 0.01m/s |
