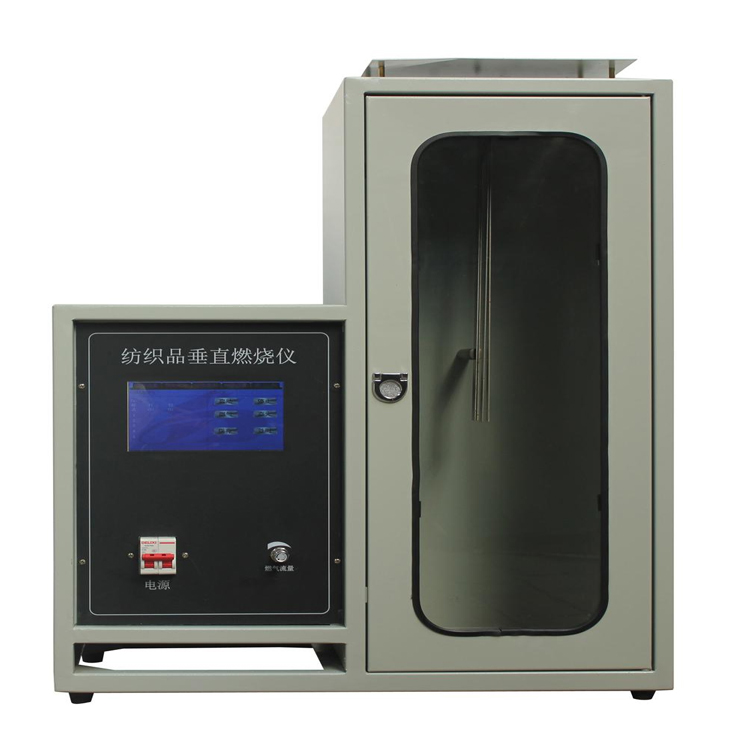

CZF-5455 Touch Screen Control Textile Vertical Burning Instrument
Application:
The CZF-5455 touch screen control textile vertical burner is an upgraded product based on the
original equipment technology. It adopts touch screen control and the test is highly automated. In
addition to the original automation functions realized by various buttons and appliances, the touch
screen control model can store previous test data. , and the previous data can be retrieved during
the test. The equipment is suitable for all kinds of fabrics and their products such as safety nets,
protective clothing, seat belts, etc., and finally applies to the test method for the combustion
performance of the bottom edge of textiles in the vertical direction specified in the GB5455-2014
standard.
Design standard:
GB5455-2014 "Textiles - Combustion performance - Vertical release - Determination of damage
length, smoldering and afterburning time"
Applicable standard: GB6529
GB5725-2009 Safety Net
GB 8965.1-2009 Protective clothing - Flame retardant protection - Part 1: Flame retardant clothing
GB/T 6096-2009 Seat belt test method
GBT13489-2008 Vertical Small Flame Test Method for Determination of Combustion Properties of
Rubber Coated Fabrics
Main technical parameters
Touch screen display/control
Voltage: 220V
The equipment is divided into two parts: the control part and the combustion box. The inner
size of the combustion box is 330*330*765mm
The front of the combustion box is a tempered glass observation door
There are 16 exhaust holes evenly distributed on the top of the box, with an inner diameter of
12.5mm; 6 exhaust holes are distributed on both sides of the combustion box, with an inner
diameter of 12.5mm
Install the top plate on the top of the box
There is a bracket on the top of the box to support the pattern clip, and the bottom of the pattern
clip is located 17mm above the highest point of the igniter nozzle
The inner diameter of the nozzle of the igniter is 11mm, and the angle between the nozzle and
the vertical line is 25°. Ignition time: accurate to 0.05s
Gas source: industrial grade propane, butane or propane/butane mixed gas, select methane
gas with a purity of not less than 97% when the sample is pretreated according to 7.3
www.syjlab.com Sample size: 300*89mm, five pieces each horizontally and vertically
Ambient temperature: -10℃～30℃
Supply voltage and power: 220V±10% 50HZ power less than 100W
Bunsen burner applies flame time 0-99M99S, can be set arbitrarily, accuracy ±0.01s (standard
adopts 12s)
Afterglow time: the longest 0-99S
Bunsen burner blue flame height: 15mm-175mm can be adjusted arbitrarily, with flame height
scale (height 40mm)
Bunsen burner automatically ignites, automatically timed, and the ignition time can be set
arbitrarily (preset)
Touch screen related parameters:
a. Size: 7 inches, the effective display size is 15.5cm long and 8.6cm wide;
b. Resolution: 800*480
c. Communication interface RS232, 3.3V CMOS or TTL, serial port
d. Storage capacity: 1G
e. Using pure hardware FPGA driver display, "zero" startup time, it can run after power on
f. Using M3+FPGA architecture, M3 is responsible for instruction parsing, FPGA focuses on
TFT display, and the speed and reliability are ahead of similar solutions
g. The main controller adopts a low-power processor, which automatically enters the
energy-saving mode
