Product Description:

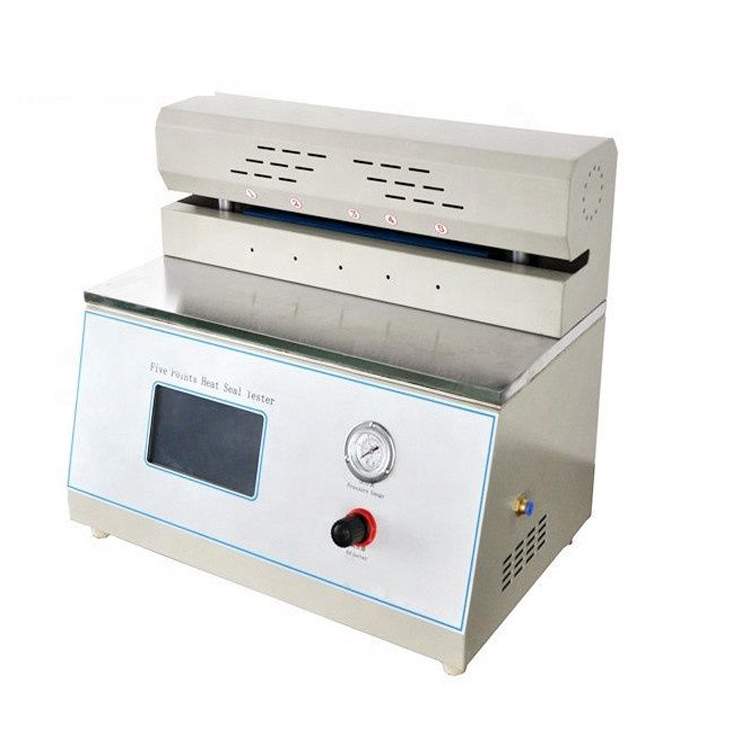

It adopts hot-pressing sealing method which is used to determination of plastic film base material, flexible packaging composite film, coated paper and other heat sealing compound film of heat sealing temperature, heat sealing time, heat sealing pressure parameters to provide users with accurate heat sealing test index. It has fully digital control system, and the key parts adopt international famous brand products with a high degree of automation, which is easy to operate.


Technical Parameter

Item

Specification

Heat Seal Temperature

RT+10℃~250℃

Accuracy

±1℃

Heating Seal Pressure

0~0.7Mpa

Heat Seal Time

0.01~99.99s

Heating Sealing Surface

300*10mm

Heating Way

single heating or double heating

Air Pressure

≤0.7MPa

Dimension (W*D*H)

550*330*460mm

Weight

40kg

Power

single-phase, AC 220V/50Hz
