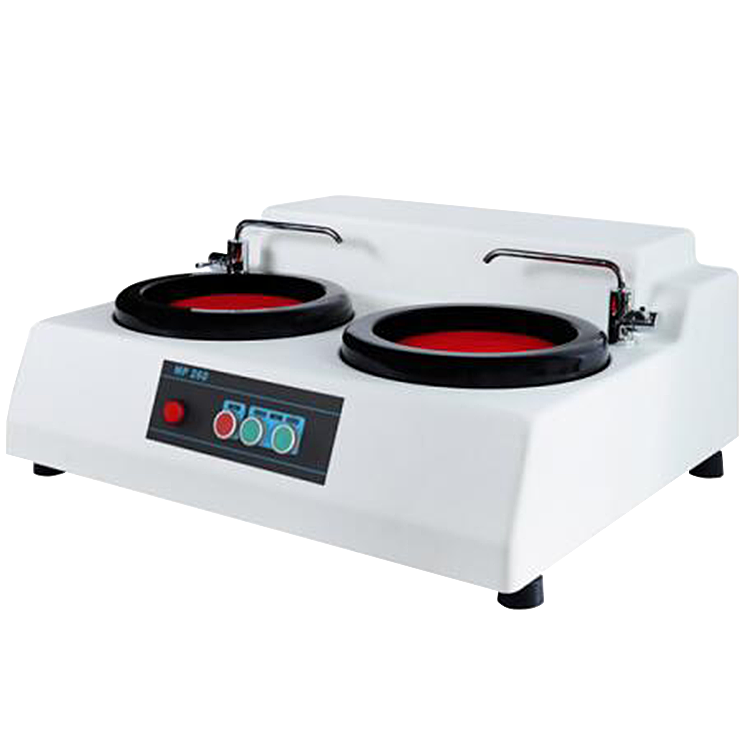

KSMopao260 Metallographic grinding polishing machine
1、Applications
The KSMopao 260 double-disc manual grinding and polishing machine integrates multiple functions such as pre-grinding, grinding and polishing of metallographic samples. It has strong power, low noise, durability and simple operation. It is an ideal grinding and polishing machine for enterprises and scientific research institutions.
2、Main Technical Parameters
|
Model |
KSMopao 260 |
|
Grinding Disc Diameter |
203mm（customizable φ230,φ250） |
|
Grinding Disc Rotating Speed |
300/600rpm |
|
Motor |
550 W |
|
Dimensions |
566*712*270mm |
|
Package size |
758*776*421mm |
|
Net weight |
42kg |
|
Gross Weight |
53kg |
|
Power supply |
Single-phase 220V,50HZ |
