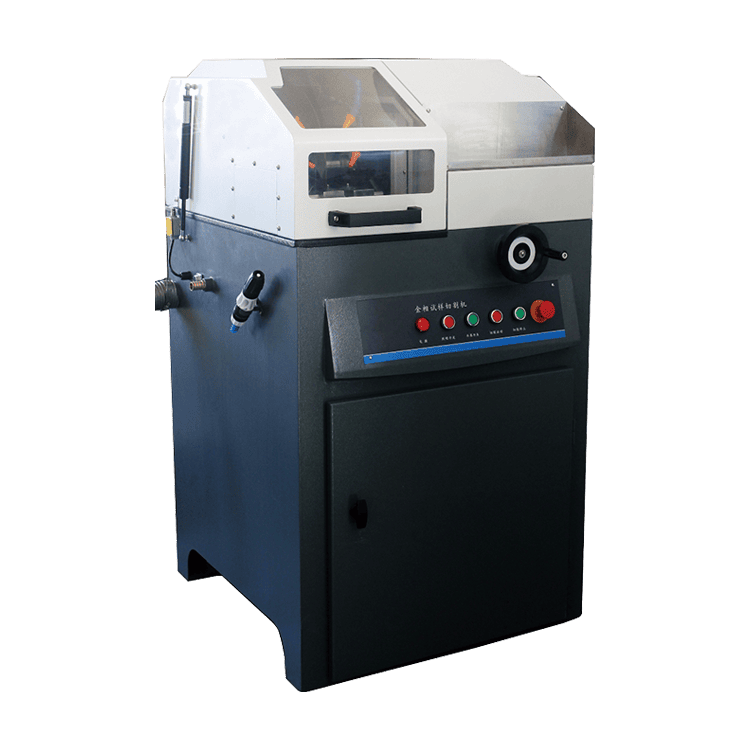

KSCUT-120SF Manual Metallographic cutting machine
1、Features
The machine adopts fully closed double cover shell structure, the cutting room and the motor room are separated independently, do not affect each other, safe and reliable, and the large fit improves the service life of the motor; The machine adopts fast clamping device, clamping objects more quickly and accurately; Single-side gas spring device, moderate elasticity, easy to switch cutting chamber cover; The hand wheel drives the motor to cut the Y direction of the cutting sheet, and the speed is completely manually controlled. Special cooling water tank for coolant circulation; The main parts of the cutting plate cover, the grinding wheel spindle, the jaws and so on are made of stainless material, and the service life is long. Stainless steel sample placement slot on the right side to improve the usability and convenience of equipment; Large cutting range and transmission power; Smooth rotation, low noise.
2、Main Technical Parameters
specification
400Y
Maximum cutting section
Φ120mm
Grinding wheel sheet specification
400*3.0*32mm
rotate speed
2800r/min
motor
4KW 380V 50HZ
Emergency brake device
emergency stop switch
Cutting room lighting
Low voltage DC lighting
Cutting platform specification
240*232mm
holding device
Standard fast fixture (one set of left and right)
cooling installation
External circulating filter water tank 40L, multiple sets of water spray device and cooling water gun
Manual cutting mode
Manually move cutting in Y direction
inspection window
Explosion-proof transparent engineering plastics
boundary dimension
768*780*1285mm
weight
250KG
