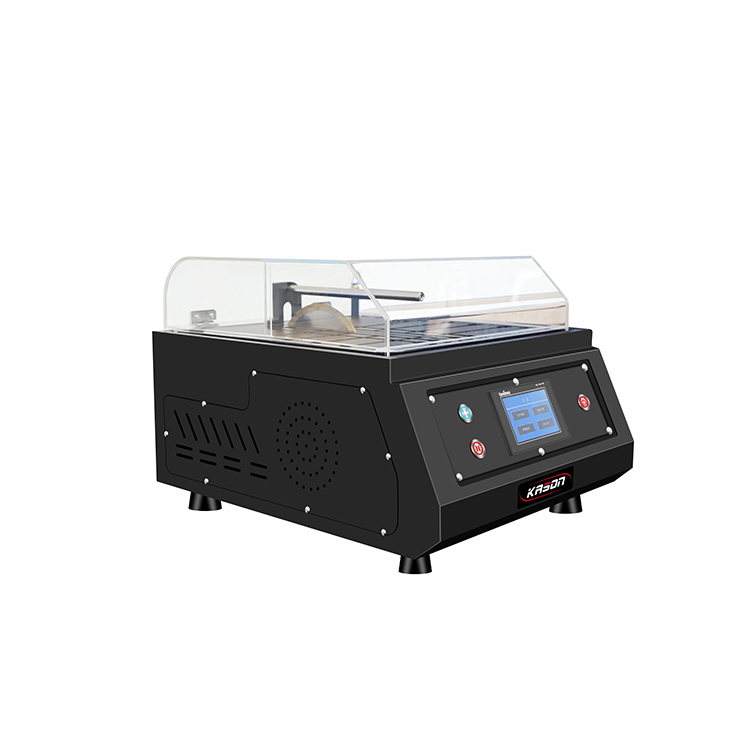

KSCUT200-P Metallographic Plate Precision Cutting Machine
Introduction:
KSCUT200-P metallographic precision flat cutting machine is suitable for cutting samples of semiconductors, crystals, circuit boards, fasteners, metal materials, rocks and ceramics. The machine body is smooth, spacious and generous, providing a good working platform. And adopts high torque and high power servo motor and stepless variable speed control system, which has high efficiency and stability. Good visibility and cutting ability minimize the difficulty of operation and are easy to use. Moreover, the machine is equipped with a variety of different fixtures, which can cut irregularly shaped workpieces. It is a high-quality precision cutting machine suitable for scientific research institutions and enterprises.
Specification:|
MODEL |
KSCUT200-P |
|
Y axle range |
200mm |
|
Cutting method |
straight line, pulse |
|
Diamond cutting wheel（mm) |
Φ200×0.9×32mm |
|
Spindle rotation speed（rpm） |
500-3000,can be customized |
|
Automatic cutting speed |
0.01-3mm/s |
|
Manual cutting speed |
0.01-15mm/s |
|
Impact cutting speed |
0.1-2mm/s |
|
Max. cutting thickness |
40mm |
|
Max. clamping length of table |
585mm |
|
Max. clamping width of table |
200mm |
|
Screen display |
5 inch all in one touch screen control machine |
|
Usage date |
10 Varieties available |
|
Worktable size（W×D,mm） |
500×585 |
|
Power |
600W |
|
Voltage supply |
Single phase 220V, 50Hz |
|
Dimension of machine |
660×700×400mm |
