Abstract
The selection of the ideal charpy impact Testing Machine depends heavily on your Test energy demand, specimen type, accuracy requirements, and long-term operational stability. This 2026 buyer’s guide focuses on the KASON PIT302W computer control impact testing machine, analyzing its performance, configuration, total cost of ownership, and global service system to help material research labs, fastener factories, and quality inspection institutions choose a high-value low-temperature bolt impact test solution.
Key Takeaways
- The impact Testing machine is matched according to test energy, specimen size, and test standards.
- KASON PIT302W provides 150J/300J dual energy options, meeting 50J low-temperature bolt impact test requirements.
- Focus on total cost of ownership, not just upfront price: including maintenance, consumables, and service.
- Local after-sales support and fast spare parts supply effectively reduce downtime.
- Robust single supporting column structure and high-precision optical encoder ensure long-term durability under dynamic impact loading.
- Intelligent computer control system simplifies operation and improves test efficiency.
Understanding Charpy Impact Testing Machine Ecosystem
Like a Universal testing machine, a charpy impact testing machine also has two core parts: the high-stiffness main frame and the precision measurement & control system.
KASON PIT302W is an integrated high-performance solution, not just a single component. It combines a robust cantilever frame, imported high-speed seals, high-precision optical encoder, and intelligent test software to ensure stable, accurate, and repeatable impact test results.

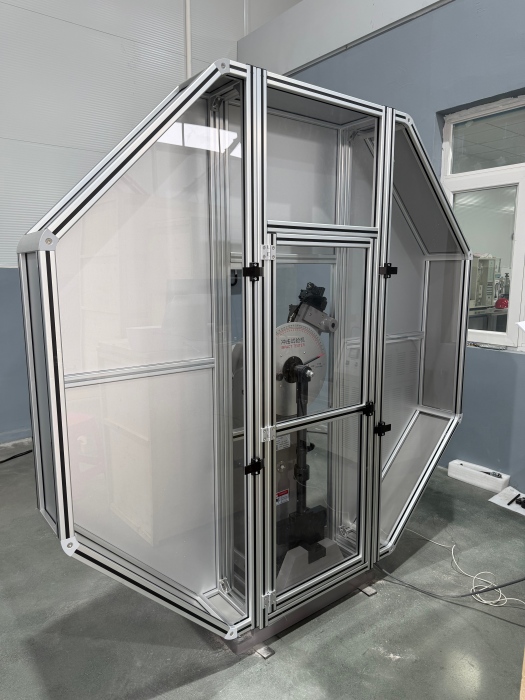

KASON PIT302W: High-Value Champion in 150J/300J Impact Testing Machines
In metal material and fastener quality control, a reliable, high-precision charpy impact testing machine is critical for capturing impact toughness and dynamic fracture resistance. Built by Jinan Kason Testing Equipment Co., Ltd., a leading global provider of material testing solutions with over 20 years of expertise, the KASON PIT302W sets a new benchmark for charpy impact testing systems.
Application & Materials
- Metal materials: carbon steel, alloy steel, cast iron, non-ferrous metals.
- Fasteners: ASTM A325/A320, grade 8.8 bolts (M12~M24), low-temperature bolts.
- Test items: charpy V-notch/U-notch impact test, low-temperature impact test.
- Application scenarios: material R&D, fastener manufacturing, quality inspection, third-party certification.
Fully compliant with global testing standards, its impact system meets or exceedsASTM E23, ISO 148, EN 10045, while also complying with GB/T 3808-2002, GB/T 229-2007.
Mechanical Structure & Stability Advantage
- Single supporting column structure, cantilever type pendulum hanging mode.
- U-shaped pendulum body, high rigidity, no deformation during impact.
- Replaceable impact cutter, easy maintenance and replacement.
- Simply supported beam for specimen placement, accurate positioning.
- Safety guard pin and safety guard net for operator protection.
- Automatic pendulum raising, impact, and sample feeding for efficient operation.
This robust structure ensures stable performance even under long-hour industrial testing, minimizing deviation and ensuring repeatable results.
Premium Configuration
- 150J & 300J dual pendulums, meeting different energy test requirements.
- High-precision optical encoder for accurate impact energy detection.
- Imported servo motor for stable pendulum driving.
- Semi-closed protection cover for safety and noise reduction.
- Optional automatic recycle system and full-closed protection cover.
Intelligent Test System & Software Features
- Full digital adjustment for impact energy and angle zero-point.
- Real-time test data display: energy loss, impact toughness, rising angle.
- Auto calculation: average value, standard deviation of test results.
- Multi-language interface (English/Chinese), compatible with Windows system.
- Customizable test reports (Excel/Word) with company logo.
- Data storage and query function for historical test records.
- Overload, overtravel protection for system security.
The complete test flow — select test → input specimen info → start test → generate report — simplifies operation and improves efficiency for both new and experienced users.
After-Sales Support
- One-year warranty for the whole machine.
- Professional online after-sales & remote guidance for installation, operation.
- Designed and manufactured exclusively in KASON’s own factory.
- Global service network with fast response.
Certification & Standards
- ISO 9001, CE certified.
- Comply with ASTM E23, ISO 148, EN 10045, GB/T 229 and more.
- Suitable for third-party certification and inspection.
Frequently Asked Questions (FAQ)
1. Why choose the KASON PIT302W impact testing machine?
It provides 150J/300J dual energy options, high-precision optical encoder, robust cantilever frame, intelligent computer control system, and global after-sales support. Ideal for both laboratory research and industrial fastener impact testing.
2. What materials can the KASON PIT302W test?
It is mainly used for impact toughness test of metal materials such as carbon steel, alloy steel, cast iron, non-ferrous metals, and is especially suitable for low-temperature impact test of ASTM A325/A320 grade 8.8 bolts.
3. What is the warranty period?
The whole machine has a 12-month warranty.
4. Do you provide installation and training services?
Yes. We provide remote video installation guidance and online operation training to help you get started quickly.
5. Can it meet international certification standards?
Yes. The PIT302W fully meets ASTM E23, ISO 148, EN 10045 standards and can be used for third-party testing, factory inspection, and project acceptance.
