Abstract
The selection of high-tonnage servo Hydraulic Universal Testing equipment relies on load capacity, frame rigidity, measurement accuracy, hydraulic stability, international standard compliance and full lifecycle after-sales service.
Key Takeaways
· Universal Testing Machine configuration shall be matched according to Test material type, maximum test force demand and international standard accuracy requirements.
· KASON HUT106W adopts Class 0.5 high-precision measurement system, fully compliant with ASTM E4, ISO 7500-1, ISO 6892 mainstream global test standards, suitable for laboratory certification and industrial mass quality inspection.
· Comprehensive evaluation shall focus on total cost of ownership rather than initial purchase price, covering hydraulic maintenance, wearing parts replacement and overseas after-sales response efficiency.
· Imported core hydraulic components and six-column ultra-rigid frame greatly reduce equipment deformation under heavy load, improving test data repeatability and consistency.
· KASON HUT series covers multiple tonnage ranges, with customizable tensile space, clamping fixtures and test auxiliary tools to adapt diversified Testing scenarios.
· Three closed-loop intelligent control software simplifies operation flow, supports multi-language switching and customizable test report output.
Understanding Servo Hydraulic universal testing machine Ecosystem
Similar to other material testing equipment, servo hydraulic Universal testing machines consist of two core modules: high-stiffness main load frame and precision measurement & electro-hydraulic servo control system.
KASON HUT106W is an integrated full-performance testing solution rather than single independent components. It combines heavy-duty six-column high-rigidity frame, US SUN plug-in hydraulic valve block, Class 0.5 spoke Load Cell and multi-functional intelligent test software, realizing stable, accurate and repeatable tensile, compression, bending and shear test results for metal and construction materials.
Two Market Types: Premium Imported Brands vs. KASON High-Value Series
|
Feature |
Premium European & American Import Brands |
KASON High-Value Series (HUT106W) |
|
Accuracy Class |
Class 0.5 / Class 1 |
Class 0.5 identical high precision |
|
Core Configuration |
Full imported complete assembly, extremely high procurement cost |
Imported key hydraulic parts + self-developed integrated control system |
|
Overall Price |
High investment threshold |
Cost-effective, competitive factory direct price |
|
Global After-Sales |
Slow overseas response, expensive spare parts supply |
Global customer service network, remote online guidance & fast spare parts delivery |
|
Main Application Scenarios |
Top scientific research laboratories |
Industrial production QC, construction inspection, third-party testing institutes, metal fastener factories |

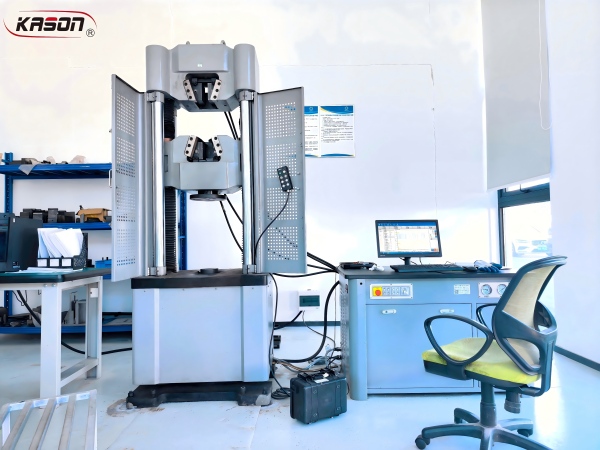

KASON HUT106W: High-Value Benchmark of 1000kN Servo Hydraulic Universal Tester
In industrial raw material inspection, construction component acceptance and fastener mechanical performance testing, a high-rigidity, high-precision hydraulic Universal Testing machine is essential to guarantee reliable test data. Developed and manufactured by JINAN KASON TESTING EQUIPMENT Co., LTD., a professional material test instrument manufacturer with mature R&D and production capacity, KASON HUT106W sets a new industry standard for 1000kN heavy-duty servo hydraulic universal testing equipment.
Application & Testable Materials
· Metallic raw materials: metal wire, round rod, seamless tube, steel strip, steel plate, metal profiles
· Fastener products: bolts, studs, nuts, covering tensile test, proof load test, single/double shear test
· Construction materials: steel rebar, welded wire mesh, precast concrete components, structural building parts
· Available test items: tension, compression, bending, shearing The complete force measurement system meets or exceeds ASTM E4, ISO 7500-1, ISO 6892, EN 10002-2, BS 1610, DIN 51221 standards; deformation measurement conforms to ASTM E83, ISO 9513 international calibration specifications.
Mechanical Structure & Stability Advantages
· Six-column ultra-high rigidity main frame (4 main columns + 2 lifting lead screws), thickened Φ76mm hard chrome-plated columns
· Super structural rigidity to eliminate frame deformation under full load, guarantee perfect axial alignment of specimens
· Double-acting movable crossbeam, fast adjustment of tensile test space to adapt specimens of different lengths
· Semi-open front hydraulic wedge automatic clamping jaws, easy loading/unloading of round & flat samples
· High-precision spoke-type Class 0.5 load cell, stable force signal acquisition without drift
· High-precision digital displacement sensor with 0.0025mm resolution, accurate stroke tracking
· Large-diameter Φ230mm hydraulic piston cylinder, stable output thrust, long service life This robust mechanical structure maintains stable running state during long-time continuous industrial testing, effectively lowers test error and ensures excellent data repeatability.
Intelligent Three Closed-Loop Test Control System & Software Functions
1. Full digital calibration function The dedicated KASON 550 controller supports digital zero-point and gain adjustment for load, deformation and displacement channels, simple operation and strong anti-interference stability.
2. Multi-parameter storage & calling function All test parameters can be saved and recalled, supporting one host to match multiple different sensors and fixtures.
3. Three closed-loop real-time control Force closed-loop, deformation closed-loop, displacement closed-loop switching at will; real-time curve display when adjusting control parameters for intuitive effect observation.
4. Complete graphic processing capability Test curves support real-time display, zoom, shrink, self-adaptation and curve overlay; can locate and display coordinate values of any test point, print curves in customized range.
5. Automatic data analysis & human-computer interaction Automatically calculate tensile strength, yield strength, elongation, elastic modulus and other mechanical indicators; support manual correction and comparison of multiple groups of test data.
6. Multi-level user identity authority management Different operation permissions set for administrator and ordinary operators, convenient for daily test operation and effective system parameter protection.
7. Multiple control modes Support displacement control, force control, strain/deformation control, constant stress, constant strain cyclic testing and other working modes.
8. Global mainstream test standards built-in Preloaded GB, ASTM, DIN, JIS, BS, ISO series test standard templates for one-click selection.
9. Multi-unit switching for load display Load values can be displayed and exported in kN, lbf, kgf according to user selection.
10. Optional full test process video recording Add external DV camera, software supports whole test video recording, playback and storage for test traceability.
11. Custom editable test report Report supports export in Word & Excel format, allows adding enterprise LOGO, tester information, test standard, maximum load and curve data; all report content can be freely edited.
12. Multi-language operation interface Standard English version, optional Russian, Turkish, Spanish and other international language packages for overseas customers.
The complete standardized test workflow: Select test type → Load test standard template → Input specimen dimension information → Start automatic test → Auto-generate & print test report. The simplified operation logic lowers the technical threshold for new operators and improves daily laboratory testing efficiency.
Beyond the Equipment: Core Purchasing Reference Factors (2026)
After-Sales Service (Highest Priority)
· Full machine 12-month warranty period
· Professional online remote video guidance for equipment installation, debugging and daily operation training
· Independent factory R&D and production, stable spare parts supply chain for global customers
· Multilingual after-sales engineer online support for overseas projects
Total Cost of Ownership (TCO)
· Low daily hydraulic system maintenance cost, low wearing parts replacement frequency
· High-efficiency servo oil station reduces long-term power consumption
· Imported core hydraulic valve blocks lower equipment failure rate
· Long service life of main frame, reduce later equipment replacement investment
· Complete standard accessories configuration, avoid extra repeated procurement costs
International Certification & Standard Compliance
· Factory passed ISO 9001 quality management system certification, CE safety certification
· Fully compliant with ASTM E4, ISO 7500-1, ISO 6892, EN, BS, DIN global test standards
· Test data and reports recognized by third-party certification laboratories worldwide
Full KASON HUT Series Model Range
Besides KASON HUT106W 1000kN model, KASON HUT servo hydraulic universal Testing Machine series covers multiple tonnage specifications, with customizable tensile test space, column spacing, fixture types and test speeds, providing targeted material testing solutions for laboratories, metal processing factories, construction enterprises and overseas inspection institutions with different test force demands.
Making a Long-Term Reliable Purchase Decision
The KASON HUT106W servo hydraulic universal testing machine is not merely a high-precision material testing device, but a long-term stable partner for enterprise raw material quality control and laboratory material research. It balances heavy-load structural rigidity, international standard measurement accuracy, stable hydraulic performance, reasonable procurement cost and global after-sales support, becoming the optimal 1000kN hydraulic universal tester selection in 2026.
Whether for daily production batch inspection, construction project acceptance or university material laboratory scientific research, KASON HUT series universal testing machines can deliver professional, stable and cost-effective all-round mechanical performance testing solutions.
Frequently Asked Questions (FAQ)
1. What core advantages does KASON HUT106W own compared with similar 1000kN testing machines?
It adopts six-column ultra-rigid frame, Class 0.5 full-scale measurement accuracy, US SUN imported hydraulic valve components, three closed-loop intelligent control software, semi-open automatic hydraulic clamping jaws and complete standard accessories. It balances heavy-load stability, test precision and cost performance, applicable to both third-party laboratory certification and factory mass continuous testing.
2. Why choose KASON as your long-term testing equipment supplier?
JINAN KASON TESTING EQUIPMENT Co., LTD. has mature experience in material testing instrument R&D, production and export, holding ISO 9001 and CE certification. We own independent workshop, professional R&D team and overseas after-sales service system, not only providing equipment products, but also full-process technical support for global customers.
3. How long is the whole machine warranty period?
The complete machine enjoys 12-month manufacturer’s warranty.
4. About packaging and international transportation?
All equipment adopts standard export plywood case packaging with moisture-proof, shockproof and rust-proof treatment. We cooperate with stable international freight forwarders to support sea, air and land multimodal transport to all countries worldwide.
5. Can the test data and reports meet international third-party inspection requirements?
Yes. The HUT106W fully complies with ASTM E4, ISO 7500-1, ISO 6892 and other mainstream international testing standards. Test curves and printed reports are recognized by global third-party inspection institutes, which can be directly used for factory product inspection and project acceptance.
