ASTM A938 ISO 7800 ISO 9649 Which Floor-Standing Touch-Screen Wire Torsion Tester Delivers Reliable Torsion-Test Performance?

Abstract

Selecting a reliable wire Torsion Testing Machine depends heavily on specimen diameter range, torsion-mode requirements, compliance with international standards, operational convenience and long-term running stability.

Key Takeaways

-A torsion Tester shall be selected according to wire diameter range, unidirectional / bidirectional torsion requirements and applicable Test standards.

-It is fully compliant with ASTM A938, ISO 7800, ISO 9649 and corresponding Chinese national standards for metallic-wire Torsion Testing.

-Focus on total-cost-of-ownership rather than only initial purchase price, including consumable jaws, maintenance and after-sales response.

-Global service support and spare-parts availability help minimize equipment downtime for production-line and laboratory users.

Understanding Wire Torsion-Testing Machine Ecosystem

Similar to universal material testers, a wire torsion Testing machine contains two core assemblies: a rigid mechanical host frame and high-precision measurement-control unit. It combines heavy-duty mechanical frame, high-performance AC drive-reduction system, imported microprocessor control unit and touch-screen human-machine interface, ensuring stable, repeatable torsion-test results for metal-wire ductility assessment and defect inspection.

Application & Materials

-Metal wires: high-speed steel wire, prestressed steel wire, copper & copper-alloy contact wire, galvanized overhead-stranded wire, round metal wire

-Main industries: metallurgical factories, wire-rope plants, cable manufacturers, highway-construction sectors, university mechanics laboratories and scientific-research institutions

-Test items: unidirectional torsion test, bidirectional (reverse) torsion test; evaluate wire plastic-deformation capacity and reveal surface / internal defects

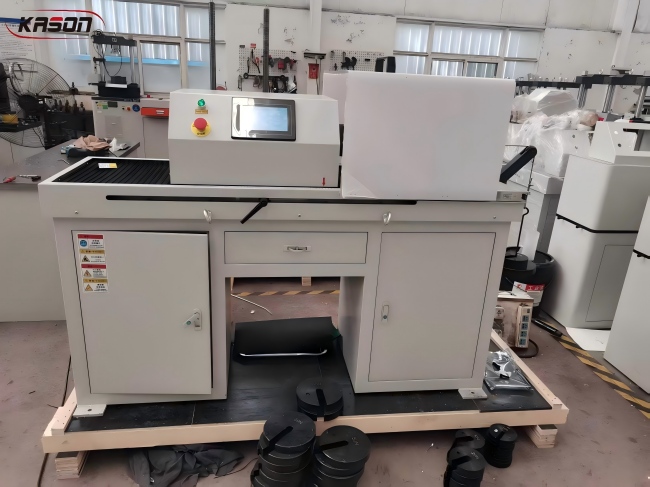

Mechanical Structure & Stability Advantage

-High-performance AC motor paired with precision reduction gearbox for smooth power output

-High-reliability frequency-inverter drive for steady rotation and low power consumption - Quick-clamping chuck on fixed-end side with quick-release handle for fast specimen mounting

-Movable-bearing-seat power-output side adopting low-friction linear bearings to guarantee specimen axial straightness during test

-Compact floor-standing cabinet layout with integrated cabinet for electric-component housing, suitable for lab-floor and production-workshop deployment.

Intelligent Test System & Software Features

-Imported Atmel microprocessor control unit for stable control performance

-Industrial--grade LCD touch-screen display with wide viewing angle and long service life-Hall-effect counting sensor with strong anti-interference and high-dynamic-response performance

-Automatic wire-break judgment function; test data can be saved and printed via thermal printer - Human-friendly control interface, real-time visual display for all test status

-Freely adjustable test speed with real-time speed control and stepless speed regulation

-Support forward-reverse rotation, wide-range setting of torsion cycles

-Immediate machine stop upon specimen fracture with minor measurement error

-Multi-layer safety protection: over-current, over-voltage protection functions

Certification & Standards

-Compliant with ASTM A938, ISO 7800, ISO 9649 and relevant GB national standards - Suitable for third-party certification, factory incoming inspection and laboratory material research

Frequently Asked Questions (FAQ)

1. Why choose the KASON TT torsion testing machine?

It supports both unidirectional and bidirectional torsion for 1.0-10.0 mm metal wires, featuring stepless speed adjustment, automatic wire-break detection, one-key chuck reset, reliable mechanical structure and international-standard compliance. It fits well for factory quality-control as well as laboratory testing scenarios.

2. What materials can KASON TT test?

It is designed for various metallic wires: high-speed steel wire, prestressed steel wire, galvanized stranded wire, copper-alloy contact wire and other round metallic wire products.

3. Do you provide installation, training and after-sales service?

Yes. We provide remote-video installation guidance and online operation training to help users get familiar with equipment operation quickly.

4. Can it satisfy international test-standard requirements?

Yes. KASON TT fully complies with ASTM A938, ISO 7800, ISO 9649 and corresponding Chinese GB standards and can be applied for third-party inspection and product-quality acceptance.
