Abstract
The ideal small force Universal Testing Machine hinges on Test force range, precision grade, specimen types, space footprint and long-term operational stability.
Key Takeaways
· Desktop single-column Tester is tailored to low-load non-metallic materials, matching test force, specimen size and international calibration standards
· KASON ETM503 reaches Class 0.5 high precision, fully meets lab certification and daily production quality inspection demands
· Evaluate total cost of ownership instead of initial price alone, covering fixtures, maintenance, spare parts and after-sales training
· Abundant standard & optional grips cover tension, compression, bending, peeling, shear tests for multiple soft materials
· Compact single-column design saves lab space, digital closed-loop control ensures stable, repeatable test curves and data
· Multi-language test software supports mainstream global test standards, editable custom export reports
Understanding Single Column Universal testing machine Ecosystem
Similar to large hydraulic universal testers, bench-top Single Column Testing Machines consist of two core modules: high-rigidity single-column load frame and full-digital measurement & closed-loop control system. KASON ETM503 is an integrated compact high-precision test system, not just standalone hardware. It combines rigid single-column frame, precision S-type Load Cell, ball screw servo drive, handheld remote controller and professional test software, delivering consistent, accurate and repeatable test data for low-force specimens.
Two Market Types: Premium Import Brands vs. KASON Cost-Effective ETM Series
|
Feature |
Premium European & US Small Tester Brands |
KASON ETM503 Single Column Tester |
|
Accuracy Class |
Class 0.5 |
Class 0.5 same high calibration precision |
|
Configuration |
Full imported core parts, ultra-high procurement cost |
Domestic mature frame + high-precision imported sensor, cost-effective |
|
Floor Space |
Large overall size, occupies more lab bench area |
Compact desktop layout, small footprint |
|
After-Sales Service |
Overseas support, slow response, expensive spare parts |
Domestic factory direct supply, fast remote & on-site support |
|
Application Scenarios |
Top university research labs, high-end foreign certification institutions |
Plastic, rubber, film, textile, adhesive, food, medical parts factories, small Testing labs, teaching laboratories |

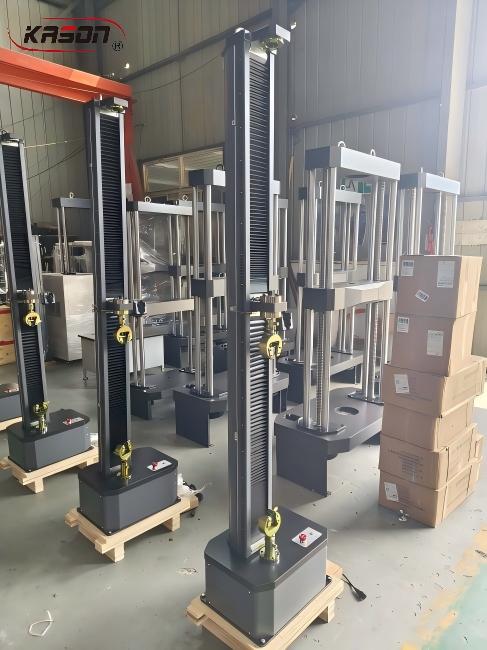

KASON ETM503: Cost-Effective Benchmark for 5kN Single Column Testers
For quality control and material research of low-strength non-metallic materials, a compact, high-precision single column universal tester is essential to capture tensile, compression, flexural, peel and tear mechanical properties. Developed by Jinan KASON TESTING EQUIPMENT Co., LTD., a professional material testing equipment manufacturer with mature low-force tester R&D capability, KASON ETM503 sets a new benchmark for 5kN desktop electromechanical testing equipment.
Application & Testable Materials
· Non-metallic materials: rubber, plastics, thin films, textile fabrics, woven bags, waterproof coils, paper, foam, timber, adhesive tapes, food packaging
· Tiny components: medical consumables, small electronic parts, thin metal wires, composite soft materials
· Supported test items: tension, compression, three-point bending, four-point bending, peeling, shear, tearing, winding tensile
· Global standard compliance: Force calibration meets ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221; strain measurement complies with ASTM E83, ISO 9513, BS 3846, EN 10002-4; machine structure meets CE safety directives EN 50081-1, EN 61010-1
Mechanical Structure & Stability Advantages
1. Single-column double-space layout: lower space for tensile test, upper space for compression test, crosshead stepless lifting, lightweight yet high integral rigidity
2. Precision ball screw transmission, zero-clearance drive structure, guarantees ultra-precise control of test force and deformation speed
3. Built-in limit baffle protection mechanism, prevents overload stroke damage to load cell and drive assembly
4. Machine base and moving crosshead adopt high-precision machined steel plates, effectively absorb vibration generated when soft specimens fracture, improve test repeatability
5. Servo motor top-mounted layout, reduces lower test space occupation, optimizes heat dissipation of motor, extends service life of electrical components
6. Three-point forced guiding structure, greatly enhances lateral rigidity of main frame, eliminates test deviation during long-time cyclic testing
7. Bolt-type quick fixture installation structure, convenient fast replacement of bending, peeling, winding and other test grips
Intelligent Measurement & Control System Advantages
1. Advanced full digital closed-loop controller, independent closed-loop regulation for force, displacement, deformation; real-time curve preview during parameter adjustment
2. Multi-layer safety protection: software & hardware dual overload, over-current, over-speed, travel limit protection
3. 24-bit high-speed A/D acquisition channel, ultra-high signal resolution, stable USB anti-interference data transmission
4. High-frequency pulse capture + quadruple frequency amplification technology, maximum signal capture frequency up to 5MHz
5. Handheld remote controller supports fast up/down, slow jog, clear data, reset, test start/stop one-key operation, convenient pre-adjustment of specimen clamping position
Professional Test Software Functions
1. Fully digital zero point & gain calibration for load, displacement, deformation, simple operation, high system stability
2. Mass storage of test parameter templates, one-click switching for different fixtures and specimens
3. Powerful curve processing: real-time display, zoom, overlay, self-adaptive scaling, coordinate point extraction, secondary curve analysis after test completion
4. Automatic calculation of tensile strength, elongation at break, elastic modulus, peel force, bending modulus and other core indicators
5. Supports global mainstream test standards: GB, ASTM, DIN, JIS, BS, ISO
6. Multi-level user authority management, isolate operator and administrator permissions to protect test data security
7. Custom editable test reports, export Word/Excel format, support embedded enterprise LOGO and company information, one-click print
After-Sales Support (Core Consideration)
1. Whole machine 12-month manufacturer warranty
2. Free remote video installation guidance, online operation & fixture matching training
3. Factory direct technical team, fast response for troubleshooting and parameter debugging
4. Complete spare parts inventory for grips, load cells, controllers, long-term supply
Total Cost of Ownership (TCO)
1. Compact desktop design, no extra large laboratory space investment
2. Servo low-power drive, low daily energy consumption
3. Wear-resistant ball screw and long-life load cell, low maintenance frequency and cost
4. Rich standard accessories included, avoids extra early-stage fixture procurement expense
Certification & Compliance
1. Machine passes CE safety certification, conforms to EU mechanical safety standards
2. Force & strain measurement fully meets ASTM E4, ISO7500-1, ASTM E83 calibration standards
3. Test data and reports support third-party laboratory ISO17025 certification audit
Frequently Asked Questions (FAQ)
1. What core advantages does KASON ETM503 have over other single-column testers?
It reaches Class 0.5 high precision matching international calibration standards, rigid single-column three-point guiding frame eliminates lateral deviation, full digital three closed-loop control, complete standard grips and expandable optional fixtures, plus factory direct global after-sales support. It balances precision, space saving and cost performance perfectly for soft material low-force testing.
2. What materials and test items can this machine complete?
It is mainly applicable to rubber, plastic film, textile, adhesive tape, paper, foam, thin wire, medical and electronic small parts; supports tensile, compression, three-point bending, peeling, tearing, winding tensile and shear tests.
3. How long is the equipment warranty period?
The complete machine enjoys a 12-month factory warranty; wearing parts such as grips offer discounted replacement supply long-term.
4. Can the machine meet international laboratory certification standards?
Yes. Its force calibration complies with ASTM E4, ISO7500-1; strain measurement complies with ASTM E83, ISO 9513, test data and reports can be used for third-party laboratory ISO17025 accreditation audit.
5. Do you provide installation and operation training services?
We provide free remote video installation guidance, one-on-one online operation training, and send operation manuals and fixture matching tutorials by email.
