Abstract
Selecting a suitable servo-Hydraulic universal testing machine heavily depends on Test force requirements, frame rigidity, accuracy grade, accessory expandability and long-term after-sales support.
Key Takeaways
· Universal Testing Machine selection should match test material, target load requirement and accuracy specification.
· Pay attention to total-cost-of-ownership instead of one-off procurement cost, covering wearing parts, optional fixtures and maintenance work.
· Rich optional grips and attachments support multi-scenario Testing for metals, fasteners and building materials.
· Reliable hydraulic components plus closed-loop control guarantee stable repeated test data under long-time heavy-load operation.
· Global after-sales support shortens equipment downtime for overseas end-users.
Understanding Servo-Hydraulic Universal Tester Ecosystem
Similar to high-end laser processing equipment, servo-Hydraulic Universal Testing machines consist of two core modules: high-stiffness main load frame and high-precision measurement-and-control system.
Application & Tested Specimens
· Metallic materials: wire, round rod, tube, strip, metal plate
· Fastener products: bolt, stud, nut (tensile test, proof-load test, single&double shear test)
· Construction-related samples: rebar, welded wire mesh, building components, concrete compression specimens
· Test modes: tension, compression, bending, shearing
The machine complies with mainstream global testing specifications:ASTM E4, ISO 7500-1, ISO 6892-1, also supports GB, DIN, BS, JIS standard test workflows. Strain-measuring performance meets requirements of ISO 9513 and ASTM E83.

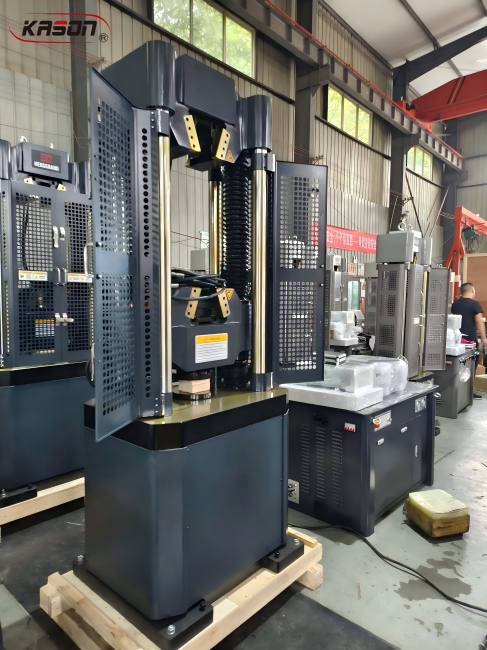

Mechanical Structure & Stability Advantages
· Six-column high-rigidity main frame (4 main columns plus 2 driving screws), excellent frame stiffness to guarantee good axial alignment and uniform load distribution.
· Double-acting movable crossbeam, fast adjustment for different specimen lengths, flexible to switch tension and compression test space.
· Semi-open front-type hydraulic wedge automatic clamping jaws; convenient specimen loading-unloading, improving daily test efficiency.
· High-precision spoke-type load-cell (Class 0.5 grade), stable force acquisition under long-duration heavy-load working status.
· High-resolution displacement sensor, displacement resolution up to 0.0025 mm.
· Large-stroke heavy-duty hydraulic piston, stable output force and extended service life.
The robust mechanical design minimizes frame deformation during full-range loading, securing good repeatability even under continuous batch testing.
Intelligent Software & Measurement-Control Functions
· Full-digital controller supports zero-point and gain digital calibration for load, deformation and displacement channels.
· Real-time closed-loop adjustment, displaying reference curves during parameter tuning for operator observation of control performance.
· Complete graphic processing functions: curve zoom, overlap, replay, export and print; support viewing coordinate values for test feature points.
· Automatically compute tensile strength, yield strength, elongation after fracture, elastic modulus and other key material indicators.
· Multi-level user permission management, separating operator and administrator access for system security.
· Multi-language UI: default English; optional Russian, Turkish, Spanish and other language packages.
· Customizable test reports, export Word / Excel format, support embedding customer company LOGO.
· Optional camera video-recording function, record full test process for traceability.
· Pre-installed standard test templates covering GB, ASTM, DIN, JIS, BS series specifications.
After-Sales Support
· Remote video guidance for installation, commissioning and operator training.
· Equipment fully designed, assembled and tested in-house at KASON factory.
· Spare parts supply channel for global customers to shorten repair cycles.
Total Cost of Ownership
· Mature hydraulic system structure reduces daily maintenance workload.
· Imported core hydraulic components lower failure probability.
· Modular fixture design allows adding special grips later without replacing main machine.
· Long service life of the rigid frame, decreasing frequency for whole machine renewal.
Compliance & Certification
· Passed ISO 9001 quality-system certification.
· Force-measuring system conforms to ISO 7500-1, ASTM E4; satisfies third-party laboratory inspection requirements.
Frequently Asked Questions (FAQ)
1. What advantages does KASON HUT605W have?
It features Class 0.5 high measurement accuracy, heavy-duty six-column rigid frame, US SUN hydraulic valves, semi-open easy-loading hydraulic jaws, abundant optional test accessories and multi-language test software, suitable for certification labs and factory batch-test scenarios.
2. What specimens can this machine test?
Mainly for metal wire, bar, tube, plate, rebar, various bolts and fasteners, also for building material compression samples, performing tension, compression, bending and shear tests.
3. Do you offer installation guidance and operator training?
Yes, we provide remote-video-based installation guidance and online operation training service.
4. Can it meet international standard requirements?
Yes. It fulfills ASTM E4, ISO 7500-1, ISO 6892-1 and many other mainstream international testing standards, applicable for third-party inspection and certification.
