Abstract
Selecting a reliable steel strand static load anchorage Testing Machine hinges on maximum Test force capacity, long-duration holding stability, full compliance with international & industry standards, precision measurement and unattended operation safety.
Key Takeaways
· Anchorage testers must match multi-hole anchor fixtures and meet core standards ISO 6934-4, GB/T14370-2007, JT/T329-2010 for engineering acceptance.
· Continuous load holding over 24 hours is supported, fully meeting long-time static load verification requirements for anchor assemblies.
· Four-bar heavy load frame with push-pull safety shielding ensures safe specimen loading and anti-splash protection during rupture.
· Independent hydraulic oil source cabinet with imported core hydraulic parts delivers stable, low-fluctuation loading performance.
· Built-in English HKtest software automatically calculates anchor efficiency coefficient ηₐ, fixture efficiency ηg and total strain εAPU for standardized test reports.
Understanding Static Load Anchorage Testing Machine Ecosystem
Similar to stress relaxation testers, a qualified static anchorage testing machine consists of two core modules: high-stiffness four-column bearing frame and electro-hydraulic servo closed-loop measurement & control system.
Two Market Types: Premium Western Brands vs. KASON High-Value MGW-6500 Series
Feature
Imported European & US Premium Brands
KASON MGW Series Static Anchorage Tester
Accuracy Level
Class 1 force accuracy, ±1% FS error
Same Class 1 precision fully compliant with ISO & national standards
Max Test Force
Max 5000kN, limited tonnage options
6500kN ultra-large load capacity for heavy multi-hole anchors
Long-Hour Holding
Max 12h continuous holding only
≥24h uninterrupted static load holding for standard compliance
Test Coverage
Limited hole range for anchorages
Covers 1–24 hole anchor, fixture & connector assemblies
Hydraulic Configuration
Full imported hydraulic parts with ultra-high cost
Mixed imported core valves + domestic stable pump, cost-effective integration
After-Sales Support
Slow overseas spare part supply, expensive on-site service
Global remote technical support, fast spare parts delivery
Main Application
Top university research labs
Highway/rail bridge labs, prestressed steel strand factories, third-party quality inspection
Application & Testable Specimens
· Test components: Prestressed steel strand anchorages, clamps, connectors, cable fixtures, carbon fiber prestressed reinforcement anchorage assemblies
· Test items: Static load anchorage performance test, ultimate tensile test, long-time load holding test for anchor assemblies
· Applicable scenarios: Bridge engineering inspection, precast component factory QC, national quality supervision testing, new anchorage product R&D Fully compliant with mainstream domestic and international test standards:
· ISO 6934-4 Steel for the reinforcement and prestressing of concrete — Part 4: Strand
· GB/T14370-2007 Anchors, fixtures and connectors for prestressed tendons
· JT/T 329-2010 Anchors, fixtures and Connectors for prestressed Steel strand for Highway Bridges
Mechanical Structure & Stability Advantages

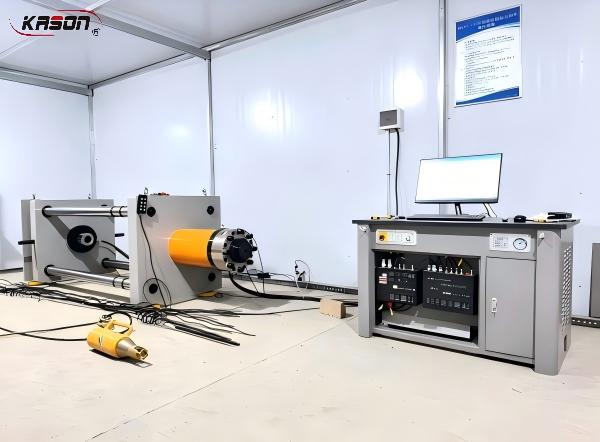

1. Four-bar heavy-duty bearing frame Constructed with left bearing beam, right bearing beam, cross tie bars, partition beam and fixing nuts to form a rigid closed load frame. The push-pull safety net wraps the whole frame for easy specimen loading and anti-splash protection when specimens break under tension. Backing plates fix anchor rings, while column load sensors connect the through-core jack for accurate force transmission.
2. High-precision displacement sensing assembly Mounted on the through-core jack piston to track cylinder travel. Photoelectric encoder paired with linear guide bearings enhances lateral force resistance of the piston rod; built-in reset springs automatically reset measuring plates after test completion, ensuring consistent deformation measurement accuracy.
3. Split independent hydraulic oil source cabinet Separated design of main machine and power unit reduces heat interference to test frame; modular hydraulic layout simplifies maintenance and daily inspection.
Intelligent Electro-Hydraulic Control & Software Core Functions
· Dual closed-loop control modes: constant-rate loading, constant-rate deformation, seamless switching without load impact
· Automatic calculation of core anchorage indexes: anchor efficiency coefficient ηₐ, fixture efficiency ηg, total strain εAPU at ultimate tension
· Real-time dynamic display of load-displacement curves during full 24h long holding test
· One-click digital calibration for load and displacement channels, simple periodic calibration operation
· Complete test data storage: save specimen parameters, full-process curves and test reports for recall and review
· Customizable test report template, editable with enterprise logo, fully matching third-party inspection filing requirements
· Automatic overload interlock protection when force exceeds full scale threshold
Multi-Layer Safety Protection Design
1. Transparent push-pull safety shield: blocks fragment splashing when steel strand ruptures
2. Software programmable overload shutdown threshold, real-time force monitoring
3. Mechanical stroke limit block to prevent over-travel damage to jack piston
4. Electrical protection: over-current, over-voltage, overload automatic power cut-off for hydraulic power unit
5. Separated oil source cabinet avoids hydraulic leakage risks near test specimens
Beyond Hardware: Key Purchasing Reference Factors for 2026
After-Sales Support (Core Consideration)
· 12-month full machine warranty covering all standard accessories and hydraulic core components
· Remote video installation guidance and one-on-one online operation training for overseas users
· Independent factory production in Jinan, stable stock of spare hydraulic parts and sensors
· Global online technical support for long-duration unattended test troubleshooting
International & National Standard Compliance
· All test algorithms and mechanical performance fully satisfy ISO 6934-4, GB/T14370-2007, JT/T329-2010
· Test reports are recognized by domestic engineering acceptance authorities and overseas third-party laboratories
· Stable long-hour holding function meets mandatory standard requirements for anchorage type inspection
Customization & Model Expansion
KASON supports customized lengthened tensile frames for extra-long anchorage assemblies; power supply voltage, frequency and special-size press pads can be adjusted according to regional customer demands. For ultra-large multi-hole anchor testing scenarios, customized higher tonnage static anchorage machine solutions are available upon consultation.
Frequently Asked Questions (FAQ)
1. What core advantages does KASON MGW-6500 have over competing anchorage testers?
It reaches 6500kN maximum test force, supports full 1–24 hole anchor testing, maintains stable load holding over 24 hours as required by GB/T14370 and JT/T329, adopts imported USA SUN hydraulic valves for smooth loading, and comes with full English HKtest software for global users. It strictly complies with ISO 6934-4 international steel strand standards.
2. What’s the warranty period of the MGW-6500 machine?
The whole machine enjoys a standard 12-month warranty covering all standard fixtures, hydraulic parts, sensors and electrical control components.
3. Can the machine run unattended for 24-hour static load holding tests?
Yes. Equipped with multi-layer overload, overtravel and electrical protection, it supports continuous 24-hour unattended holding testing, automatically records all full-process test data and curves without manual supervision.
4. Are test results accepted by engineering inspection and certification bodies?
Absolutely. All mechanical performance and data calculation logic fully meet ISO 6934-4, GB/T14370-2007, JT/T329-2010, and printed test reports can be directly submitted for project acceptance and third-party laboratory certification.
