Abstract
Selecting a reliable high-temperature electronic creep stress rupture Testing Machine relies heavily on load range, long-time measurement stability, high-temperature control precision, international standard compliance and unattended Test capacity.
Key Takeaways
· Creep Tester selection shall match material test temperature range, maximum test load and long-duration deformation measurement requirements.
· KASON RCW-100E achieves full-range accuracy ≤±0.5%, supports continuous unattended Testing over 7000 hours, fully meets ASTM E139, ISO 204, ASTM E328 international test standards.
· Prioritize long-term operational stability rather than only initial procurement cost, including furnace service life, sensor drift resistance and data integrity guarantee.
· Distributed DCS control system supports multi-machine centralized monitoring, remote fault alarm and breakpoint data recovery, drastically cutting manual guarding costs.
· KASON RCW series covers multiple load specifications from small tonnage to 100kN, matching diverse high-temperature creep, stress relaxation and cycle test scenarios.
· Split high-temperature furnace + three-stage intelligent temperature control system realizes stable heating from 200℃ to 1200℃, with ultra-long furnace service life up to 50000 hours.
Understanding High-Temperature Creep Testing Machine Ecosystem
Similar to hydraulic universal and fatigue testing equipment, Electronic Creep Testing Machines consist of two core modules: high-rigidity main load frame and high-precision full-digital measurement & control system.
KASON RCWcreep testing machineis an integrated high-performance creep test system rather than discrete components. It combines portal high-rigidity host frame, Delta full-digital AC servo drive, imported CELTRON spoke Load Cell, grating ruler deformation measuring unit and multi-language intelligent creep software, to guarantee consistent, repeatable and traceable long-time high-temperature test data.
Two Market Segments: Import Premium Brands vs. KASON Cost-Effective Series
|
Comparison Item |
Imported European & American Premium Brands |
KASON RCW-100E Cost-Effective Series |
|
Force Measurement Accuracy |
Class 0.5 |
Class 0.5 equivalent high precision |
|
Core Configuration |
100% full imported spare parts, extremely high investment |
Key sensors & servo parts imported + domestic integrated stable assembly |
|
Total Purchase Cost |
Very high upfront & maintenance expense |
Affordable price, low later operating cost |
|
After-Sales Service |
Slow overseas response, expensive spare parts delivery |
Domestic factory direct supply, fast global remote guidance & spare parts delivery |
|
Main Application Scenarios |
Top national key laboratories |
Aerospace material R&D, metal foundries, third-party inspection institutes, university labs |
Application & Testable Materials
· Metal test specimens: superalloy, titanium alloy, ferrous metal, non-ferrous metal, high-temperature alloy bars & plates
· Supported test items: steady-state creep rate, creep limit, creep elongation, rupture time, stress rupture strength, fracture shrinkage, notch sensitivity test; expandable for stress relaxation, high-temperature short-time tensile, cyclic loading & low-cycle fatigue tests
· Applicable industries: aerospace material research, metallurgical factory quality control, new material laboratory testing, third-party material certification
Full Compliance with Global & Domestic Test Standards
Machine Manufacturing & Calibration Standards
JB/T9373, GB/T16491, GB2611, GB/T16825.2
Test Method International & Industry Standards
GB/T2039, HB5151, HB5150, ASTM E139, ASTM E292, ASTM E1012, ISO 204, ASTM E328
Mechanical Structure & Core Stability Advantages

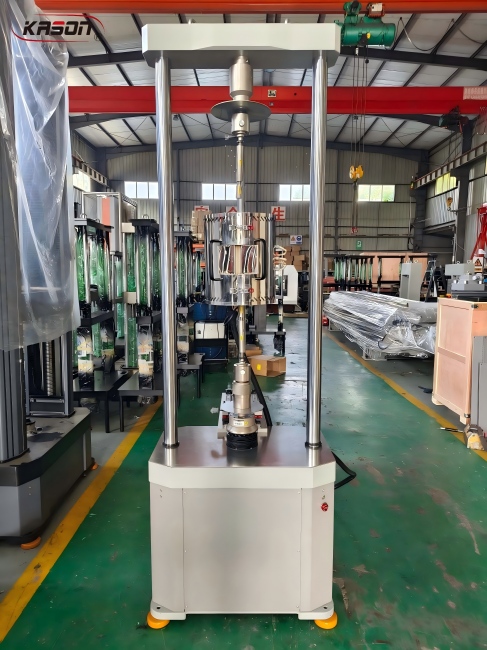

1. Portal double-upright high-rigidity frame: upper beam and workbench connected by two thick vertical columns, no frame deformation under long-term full-load tension; gapless ball screw + synchronous belt deceleration transmission, fast response and smooth loading without impact.
2. Dual automatic centering spherical ball seats for upper & lower pull rods: effectively control fixture concentricity ≤10%, eliminate lateral force interference, ensure specimens only bear pure axial tension.
3. Multi-layer interlock safety limit: travel limit switches for moving crosshead, over-temperature, over-deformation and overload interlock protection, avoiding equipment damage caused by abnormal parameters.
4. Split rotating-arm high-temperature furnace: furnace body mounted on machine columns via rotating support arms, furnace can be opened horizontally for fast specimen loading & unloading, improving test efficiency greatly.
5. Double-layer stainless steel furnace shell + ceramic fiber thermal insulation: upper & lower ventilation heat dissipation holes, average furnace surface temperature controlled below 60℃, safe long-term operation.
Intelligent Full Digital Measurement & Control System
The system integrates force sensor, grating deformation Extensometer, servo drive and temperature controller to build full closed-loop digital control platform, with prominent advantages as below:
1. Ultra-high sampling frequency: 100 times/s data collection, 24-bit high-resolution signal acquisition, force & deformation resolution unchanged across full measurement range, support one-key auto-zero and auto-calibration.
2. Multi-closed-loop switching: seamless switching of constant load rate, constant deformation rate, constant displacement speed control without test impact.
3. Distributed DCS centralized control architecture: multiple creep testers connected to one main control computer via network; lower machine controller can independently complete full test flow, store all test data offline, automatically synchronize data after computer reconnection.
4. Independent temperature linkage control: controller communicates bidirectionally with temperature instrument, auto heat up & hold according to test recipe, fully unmanned temperature adjustment without manual intervention.
5. Rich safety alarm logic: emergency stop button on machine side, software interlock alarms including temperature over-limit, deformation over-range, travel limit, thermocouple break; support local sound-light alarm + remote SMS abnormal notification.
Multi-Functional Creep Test Software Core Features
1. Test Parameter Customization Support independent setting of user operation authority, specimen dimension parameters, furnace PID temperature curves, multi-group preset temperature control parameters for auto switching during variable-temperature tests. Built timing function to start recording when load reaches set value.
2. Real-Time Monitoring & Curve Visualization Simultaneously display stress-time, deformation-time, temperature-time three groups of real-time curves; post-test curve zoom, overlay, annotation and print function; store full original test data permanently.
3. Unattended Test & Breakpoint Recovery Complete auto heating, heat preservation, loading, cyclic data recording according to preset test plan; if power failure or computer crash occurs mid-test, restart software to resume unfinished test without data loss.
4. Data Calculation & Report Output Automatically calculate creep elongation, steady-state creep rate, rupture strength, section shrinkage and other standard indicators; support custom editable test reports, one-click export to Excel for secondary data analysis, batch printing.
5. Fault Self-Diagnosis & Multi-Mode Test Termination Auto identify communication failure, thermocouple damage, over-limit parameters and record alarm logs; four test ending modes: specimen fracture stop, manual stop, condition threshold stop, set time arrival stop.
6. Expandable Test Waveform & Batch Operation Built triangle, trapezoid, square, sine periodic waveforms for cyclic loading tests; batch input of multiple groups of specimen information before testing, support mass parallel testing of multiple machines without mutual interference.
Authority Certification & Standard Adaptability
· ISO 9001 factory quality management certification, CE export safety certification
· Fully match ASTM, ISO, GB, HB series metal high-temperature test standards, applicable to laboratory accreditation and third-party inspection reports
Complete RCW Product Model Range
Besides the flagship RCW-100E 100kN electronic creep tester, KASON RCW serial creep equipment covers multiple load grades from small tonnage to 100kN, providing customized temperature zone, fixture and software language schemes for aerospace, metallurgy, new energy material laboratories with diverse test demands.
Frequently Asked Questions (FAQ)
1. What core advantages does KASON RCW have over ordinary creep testers?
It reaches Class 0.5 full-range force measurement precision, supports 7000+ hours continuous stable deformation testing, split rotating high-temperature furnace for easy specimen replacement, distributed multi-machine centralized monitoring system, breakpoint data recovery and remote SMS alarm function, fully meeting ASTM E139, ASTM E328 international standards.
2. What materials and test items can this machine complete?
Mainly test superalloy, titanium alloy, ferrous & non-ferrous metals; carry out creep, stress rupture, stress relaxation, high-temperature short-time tensile, cyclic loading and low-cycle fatigue tests, calculate all key high-temperature mechanical indicators specified in global standards.
3. Do you provide installation and operation training?
Yes, we supply free remote video installation guidance, step-by-step software operation training and electronic operation manual in English.
4. Can test data meet international laboratory certification requirements?
Absolutely. The equipment’s measurement accuracy, temperature control stability and software data recording logic fully comply with ASTM E139 and a full set of domestic metal creep test standards; test reports support custom company logos and fully meet third-party inspection & laboratory audit requirements.
KASON – Focus on High-Temperature Material Creep Test Solutions
