Abstract
The selection of small-load single-column electromechanical Universal Testing Machine depends heavily on max Test force, specimen dimension, precision grade, international standard compliance and long-term after-sales guarantee.
Key Takeaways
· Small-tonnage single-column Tester selection is determined by test force range, specimen thickness and international Testing specification requirements.
· KASON ETM103W-E adopts Class 0.5 calibration standard complying with ISO7500-1, fully meets ASTM E4, ISO7500-1, EN10002-2 global test norms for lightweight material inspection and laboratory certification.
· Purchase decision shall focus on total ownership cost including equipment maintenance, spare parts replacement and after-sale technical support instead of only initial procurement price.
· Global distributor network and fast spare parts supply effectively reduce production downtime and testing shutdown loss.
· KASON ETM series covers various tonnage specifications from hundreds of N up to dozens of kN to satisfy rubber, plastic, film, textile and small component tensile/compression test requirements.
· Three closed-loop intelligent control system and high-precision S-type Load Cell ensure stable test data and outstanding repeatability of test curves.
Two Market Types: Premium European/US Brands vs. KASON High-Value Series
|
Feature |
Premium European/US Brands |
KASON High-Value Series (ETM103W-E) |
|
Accuracy Class |
Class0.5 per ISO7500-1 |
Class0.5 fully compliant with ISO7500-1 same standard precision |
|
Configuration |
Full imported complete assembly with ultra-high cost |
Core key sensor + drive parts imported + domestic mature frame integrated assembly |
|
Price |
Extremely high initial investment |
Cost-effective with reasonable factory direct price |
|
After-Sales Service |
Slow overseas response, expensive spare parts & maintenance |
Global distributor layout, local quick technical support and affordable spare parts |
|
Application Scenario |
Top-tier university research labs & large authoritative institutes |
Rubber/plastic factories, textile workshops, food inspection labs, electronic component manufacturers, third-party quality testing |

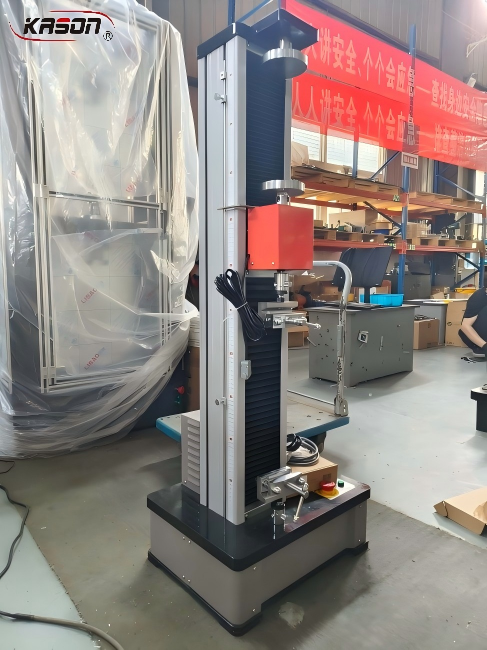

KASON ETM103W-E: High-Value Champion in 1KN Single Column Electromechanical Testing Machines
For lightweight raw material incoming inspection and small finished component quality control, a compact, high-precision single-column Universal testing machine is essential for measuring tensile strength, compression deformation, peeling force and tear resistance of thin specimens.
Application & Tested Materials
· Non-metal raw materials: rubber, plastics, thin foil, packaging film, textile fabric, adhesive tape, paper, foam, timber
· Special specimens: food packaging material, medical flexible parts, small electronic components, fine metal wire
· Available test items: tension, compression, flexure(bending), shear, tear and peel six core mechanical performance tests
Mechanical Structure & Stability Advantage
· Single-column high-stiffness main frame structure with three-point forced guiding design to guarantee integral rigidity and perfect axial alignment during full-load test
· Dual test space layout: lower space for tensile test, upper space for compression/bending test, compact overall layout to save lab floor area
· Precision ball screw drive for zero-clearance transmission, stable speed and precise control of test force and deformation
· Built-in travel limit protection baffle to avoid sensor damage caused by excessive crosshead travel
· Bench-top compact body with precision machined table and crossbeam to reduce vibration when specimen breaks and improve test repeatability
· Top-mounted motor layout for excellent heat dissipation and extended service life of electrical components
· Bolt-type quick-change fixture design for fast replacement of various test grips
This compact rigid structural design effectively avoids frame micro-deformation under 1000N full load, ensuring long-term stable testing performance and excellent data repeatability for daily batch inspection of thin specimens.
High-Precision Control & Core Technical Specifications
Premium Core Component Configuration
· Drive system: Standard stepping motor, optional imported servo control system for ultra-stable low-speed operation
· Force sensor: Standard Class0.5 S-type load cell calibrated per ASTM E4 & ISO7500-1
· Handheld remote controller for manual fine-tuning crosshead position
Intelligent Test System & Software Core Features
· Full digital calibration for zero point and gain of load, deformation and displacement parameters, simple operation and high system reliability
· Supports multi-group parameter storage, presetting and quick loading, convenient to switch multiple fixture & specimen specifications on single load frame
· Real-time closed-loop parameter adjustment with synchronous reference curve display for operators to observe control effect intuitively
· Powerful graph processing: test curve zoom, overlay, adaptive scaling, arbitrary segment preview, automatic saving & printing of load-strain/load-displacement curves
· Automatic data analysis, man-machine interactive result editing, convenient for test result check and batch data comparison
· Multi-level operator authority management to separate ordinary operation permission and system parameter modification permission, protect test system security
· Multi-control mode optional: displacement control, force control, deformation control, constant stress, constant strain and other customized test conditions
· Pre-built global mainstream test standards database including GB, ASTM, DIN, JIS, BS, ISO specifications for one-click test scheme calling
· Multi-language software: default English interface, other language versions optional
After-Sales Support (Core Purchase Reference)
· Full machine 12-month factory warranty for all components
· Professional online remote video guidance for machine installation, debugging and daily operation training
· All products independently designed & produced in KASON self-owned factory, stable spare parts supply chain
Total Cost of Ownership (TCO)
· Imported core sensor & drive accessories reduce equipment failure rate and long-term maintenance expense
· Low-power single-phase design cuts daily power consumption and running cost
· Compact bench-top design saves laboratory space, no extra foundation construction cost
· Ultra-rigid frame structure with long service lifespan reduces equipment replacement investment in later stage
Certification & Standard Compliance
· Passed ISO9001 quality management system certification and EU CE mechanical safety certification
· Full compliance with ASTM E4, ISO7500-1, EN10002-2 and a full set of mainstream global test specifications, applicable for third-party laboratory accreditation and factory incoming material acceptance inspection
Customization Service & Optional Configuration
1. Optional 800mm heightened test space version for extra-long specimen testing
2. Optional bottom cabinet for storing fixtures and spare parts
3. Optional long-travel Extensometer for soft material large deformation measurement
4. Multiple optional customized grips: wedge tensile grip, peel grip, three/four-point bending grip, pneumatic clamps for different specimens
NOTE: All above technical specifications could be adjusted without prior notice according to technical iteration and customized demand.
Frequently Asked Questions (FAQ)
1. Why select KASON ETM103W-E single column universal tester?
It is equipped with Class0.5 ISO7500-1 calibrated precision, compact single-column ultra-stiff frame, high-precision S-type load cell, abundant standard fixture set and multi-language intelligent test software, supported by global after-sales service system. Perfect match for rubber, plastic, textile and small electronic component batch inspection and formal third-party lab certification testing.
2. Why choose KASON GROUP as your long-term supplier?
KASON owns over 20 years professional R&D and manufacturing experience for material testing machines, with complete ISO9001 & CE certification, independent production workshop and professional technical R&D team. We provide full pre-sales technical consultation and after-sales follow-up service instead of merely equipment supply.
3. How long is the whole machine warranty period?
Standard full machine global warranty is 12 months starting from the date of equipment delivery.
4. How about export packaging and international transportation?
Machine adopts export standard multi-layer plywood case packaging with moisture-proof, shockproof and rust-proof processing; cooperate with global professional freight forwarders for sea/air/land multi-mode delivery solution.
