Key Takeaways
· Friction and wear Tester selection shall match contact types (point, line, plane), Testing media environments, temperature ranges and international inspection standards.
· Equipped with an integrated industrial control configuration system, the KASON-MMW-1 supports three mainstream friction pairs: pin-on-disc, thrust ring, and ball-on-disc, fully complying with ASTM D2266, ASTM D3702, ASTM D4172.
· Total cost of ownership covers the main unit, full set of friction pair fixtures, heating system, software license, later consumables and maintenance fees; quotation comparison cannot rely merely on bare machine prices.
· The Tester supports high-temperature simulation and testing with multiple media including oil, water, slurry and abrasives, featuring high automation to minimize manual operation errors.
· Full closed-loop control over load, friction torque, spindle speed, temperature and test duration; the system automatically calculates and exports friction coefficient, wear loss, PV value and other test data along with real-time curves.
· Global localized after-sales service and fast spare parts supply effectively reduce equipment downtime caused by failure.
Two Major Market Product Categories: Premium Imported Brands vs. Cost-Effective KASON Series
|
Features |
Premium European & American Brands |
KASON Cost-Effective Series (MMW-1) |
|
Compliance Standard |
ASTM D2266, D3702, D4172 |
Fully meets ASTM D2266, D3702, D4172 |
|
Configuration |
Fully imported components, extremely high investment cost |
Core imported sensors + self-developed integrated mechanical structure |
|
Price |
Ultra-high procurement cost |
Affordable price with outstanding cost performance |
|
After-Sales Service |
Slow response, expensive maintenance & spare parts |
Global service network, fast remote technical support |
|
Application Scenarios |
Top-tier national research laboratories |
Petrochemical labs, new material R&D, industrial quality inspection, university teaching labs |
Applicable Materials & Test Items
· Tested Materials: Lubricants, metal alloys, plastics, surface coatings, rubber, ceramics, composite materials
· Test Motion Modes: Rolling friction, sliding friction, combined rolling-sliding friction
· Contact Simulation Types: Point contact, line contact, plane contact
· Fully Compliant Standards: ASTM D2266, ASTM D3702, ASTM D4172
Mechanical Structure & Stability Advantages

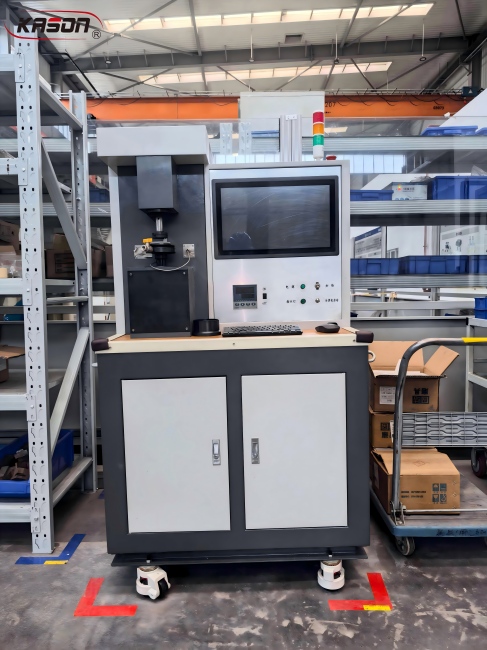

· Integrated vertical cabinet structure, compact layout with small floor space, equipped with independent storage cabinet for fixtures and consumables
· Embedded industrial computer + configuration software integrated control architecture, flexible and adjustable control modes
· Wide stepless spindle speed regulation range from 5–2000 r/min to simulate diverse actual operating speeds
· Independent closed-loop heating system with platinum resistance temperature sensors, supporting high-temperature environment simulation up to 200°C (customizable to 260°C)
· Multi-type interchangeable friction pair fixtures (pin-on-disc, thrust ring, ball-on-disc) for quick switching of different test conditions
· High-precision force and torque sensors with stable long-term holding accuracy, effectively avoiding data drift during long-duration wear tests
· Multiple control modes: manual control, time control, rotation speed control, friction torque control
Diverse Interchangeable Friction Pair Configurations
The machine supports three mainstream replaceable friction pairs to cover most laboratory friction wear test demands:
1. Pin-on-Disc Friction Pair (Single-pin / Three-pin) Includes small test ring, large test ring, sample pin and pin chuck; complete calculation formulas for friction coefficient, contact speed and wear contact area are built into the software. Corresponding conversion tables of axial wear, wear angle and contact diameter are provided for metric and imperial units.
2. Thrust Ring Friction Pair Equipped with small/large thrust ring test plates, cylindrical pins and locking fixtures; the system automatically calculates contact pressure, test linear velocity, PV value and wear factor.
3. Ball-on-Disc Friction Pair (Single-ball / Three-ball) Matched with φ12.7 standard steel balls and dedicated ball fixture; the software supports automatic calculation of Hertz maximum contact stress under single-ball and three-ball test conditions.
Intelligent Test Software & Functional Features
· Full digital zero-point and gain calibration for load, temperature and displacement channels
· Real-time synchronous display of multiple parameters: load, friction force, torque, spindle speed, temperature, test time, displacement
· Automatic real-time plotting of Friction-Time, Torque-Time, Temperature-Time curves
· Built-in friction coefficient, contact pressure, linear velocity, PV value, wear loss automatic calculation modules
· Data export to Excel format for report editing and printing
· Multi-level user authority management to ensure test data security
· Overload, over-temperature, over-travel safety protection functions
Key Purchasing Factors Beyond Equipment Performance (2026 Reference)
After-Sales Support (Top Priority)
· Professional online remote guidance for equipment installation, operation and routine maintenance
· Independently designed and produced in the manufacturer’s own factory, stable spare parts supply
· Global after-sales team to respond to technical inquiries rapidly
Certification & Standard Compliance
· Fully compliant with ASTM D2266, ASTM D3702, ASTM D4172 international test standards
· Suitable for third-party laboratory certification, factory quality inspection and new material research reports
Long-Term Reliable Testing Solution
The KASON-MMW-1 vertical universal friction and wear tester is not merely a testing instrument, but a long-term partner for your lubricant evaluation, material friction performance research and production quality control. It balances testing precision, structural stability, complete fixture configuration and affordable total cost, making it the optimal choice for multi-condition friction and wear testing in 2026.
No matter for daily laboratory material research, enterprise production quality inspection or third-party authorized testing institutions, the KASON-MMW-1 can deliver professional, stable and cost-effective friction & wear testing solutions.
Frequently Asked Questions (FAQ)
1. Why choose the KASON-MMW-1 friction and wear tester?
It supports three interchangeable friction pairs, high-temperature simulation up to 200°C, wide speed and load adjustment range, fully complies with ASTM D2266, D3702, D4172 standards, and is equipped with full automatic data processing software. It balances precision, versatility and cost performance, ideal for both academic research and industrial routine testing.
2. Why cooperate with Jinan Kason as your equipment supplier?
KASON has rich professional experience in developing and manufacturing friction and wear testing instruments, with independent R&D and production workshops. We provide one-stop technical support from equipment selection, customized fixture design to after-sales maintenance, acting as your long-term testing solution partner instead of a simple equipment vendor.
3. What is the warranty period of the machine?
The complete machine enjoys a 12-month manufacturer’s warranty.
4. Can you provide installation training and technical support?
Yes. We offer remote video installation guidance and online one-on-one operation training to help operators master all test procedures quickly.
5. Does the equipment meet international standard test requirements?
Absolutely. The KASON-MMW-1 fully meets ASTM D2266, ASTM D3702, ASTM D4172 standards, and all test data and curves can be used for formal laboratory reports and third-party certification inspection.
