Abstract
Selecting a stable, high-precision Compression Testing Machine relies heavily on Test material categories, maximum load demand, accuracy grade and international standard compliance.
Key Takeaways
· compression testing equipment shall be matched according to test specimen type, compression load range and precision grade requirements.
· Purchase decisions need to focus on total ownership cost rather than only initial procurement price, including later maintenance, wearing parts replacement and technical service expenses.
· Global localized after-sales service and rapid spare parts supply effectively shorten equipment downtime and avoid test progress delays.
· Closed-loop servo control system and multi-language test software greatly boost test repeatability and daily Testing efficiency.
Two Market Types: Premium Overseas Brands vs.KASONCost-Effective Series
|
Feature |
European & American Premium Brands |
HST YAW1000DH Cost-Effective Series |
|
Accuracy Class |
Class 1 / Class 0.5 |
Class 1, fully compliant with international calibration standards |
|
Core Configuration |
Full imported components, ultra-high procurement cost |
Imported key hydraulic seals & valves + domestic mature integrated frame |
|
Overall Price |
High initial investment threshold |
Affordable price, obvious cost performance advantage |
|
After-Sales Service |
Slow overseas response, high maintenance cost |
Global sales network, fast remote video guidance & spare parts delivery |
|
Applicable Scenarios |
Top-tier scientific research labs |
Construction factories, brick & cement plants, college labs, third-party inspection institutions |
Application & Test Specimens
· Building materials: concrete cube samples, concrete hollow blocks, Cement test pieces, clay bricks, pavement bricks
· Auxiliary test items: rubber bearing compression deformation test, small metal piece upsetting compression test
· Applicable scenarios: factory incoming & finished product quality control, university material teaching experiment, scientific institute compressive performance research, engineering project acceptance inspection
The whole machine passes multi-national standard verification, fully conforms to ASTM E4, ASTM C139, ISO7500-1, EN12390-3, EN12390-4, BS 1881, DIN51220 and other global test norms, supporting third-party laboratory calibration and certification.

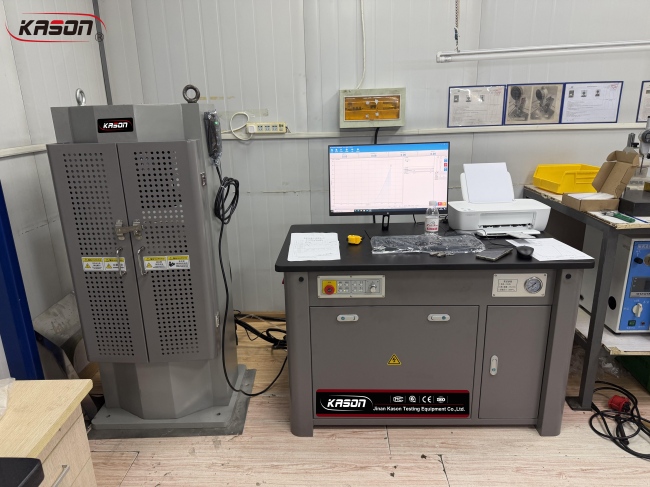

Mechanical Structure & Stability Advantages
· Double lead screw lifting structure with left-right rotation anti-shake reducer, smooth adjustment of compression test space
· Bottom-mounted loading oil cylinder with imported sealing components, low oil leakage rate and long service life
· Φ300mm quenched & tempered upper/lower Compression Platens, uniform force bearing, anti-wear and anti-rust
· Fully enclosed safety protective door with perforated noise reduction design, effectively block broken debris splashing during specimen crushing
· Rail-type press plate trolley, convenient for quick placement and replacement of large-size test blocks
· Full plastic spraying surface treatment, anti-corrosion and easy daily cleaning
This heavy-duty mechanical structure ensures long-term continuous stable operation under high-load industrial testing conditions, effectively reducing test data deviation and improving result repeatability.
Premium Complete Hydraulic & Electrical Configuration
1. Hydraulic power system
· Japanese brand AC servo motor, fast response speed
· Heidecker precision oil filter, Aditya brand high-pressure oil pipe, effectively protect hydraulic cylinder and valve core
1. Measurement & control system
· Independent external high-speed measurement controller, pull-wire type high-precision displacement sensor
· Optional spoke-type Load Cell, standard built-in hydraulic pressure sensor
· Multi-functional handheld controller, independent control of piston lifting and falling for quick specimen alignment
1. Electrical safety protection
· Upgraded power circuit with phase sequence, phase loss self-check prompt function
· Built-in over-current, overload, over-travel multiple interlock protection, greatly improve operation safety
1. Software & office matching
· English version special compression test measurement control software, real-time load-displacement curve display
· Automatic calculation of compressive strength, save test data, custom export Word/Excel test reports
· Standard HP industrial computer + HP laser printer
1. Standard full set accessories
· Φ300mm compression platens, 50mm standard test blocks, L-shaped anchor bolts
· Complete set of special maintenance tools, combined gaskets and O-ring spare seals
· Full set delivery documents: factory certificate, warranty card, host & software operation manual, packing list
Intelligent Test Software Core Functions
· Full digital zero-point calibration and gain correction for force, displacement and deformation channels
· Automatic judgment of specimen breakage, immediately stop loading and record peak load
· Multi-language operation interface, support customized company logo on test report
· Multi-level user authority management, prevent unauthorized parameter modification
· One-click test process: select test standard → input specimen size → start automatic loading → generate complete report, lower operation threshold for new operators
After-Sales Support (Most Critical Factor)
· Professional after-sales team provides remote video installation guidance, online operation & maintenance training
· Independent factory R&D and production, sufficient spare parts inventory, fast global delivery
· Long-term paid lifetime maintenance service after warranty expiration
Global Certification & Standard Compliance
· Pass ISO9001 quality management system, CE safety certification
· Fully meet ASTM E4, ASTM C139, ISO7500-1, EN12390-3 and dozens of domestic & international test standards
· Equipment data and test reports recognized by third-party inspection laboratories, engineering acceptance units
Frequently Asked Questions (FAQ)
1. What core advantages doesKASON CTM106HWhave compared with ordinary compression testers?
It adopts Class 1 high precision measurement system, three-mode full closed-loop servo control, integral heavy casting frame and imported hydraulic core parts, equipped with fully automatic computer test software and safety protective door. It balances stable performance and affordable price, suitable for both laboratory certification and factory batch continuous testing.
2. What kinds of specimens can this machine test?
Mainly complete compression tests for concrete cubes, concrete blocks, cement specimens, clay bricks; it can also finish compression deformation test of rubber pads and small metal upsetting test, covering most conventional building material compression test scenarios.
3. How long is the machine warranty period?
The whole machine enjoys 12-month comprehensive warranty service.
4. Will the factory provide installation and operation training service?
Yes, we provide one-on-one remote video installation guidance and free online operation training, helping operators master equipment calibration, test operation and routine maintenance quickly.
5. Can this machine meet international standard inspection requirements?
Absolutely. The machine fully complies with ASTM E4, ASTM C139, ISO7500-1, EN12390-3 and other internationally recognized test standards, test data and printed reports can be used for third-party calibration and project formal acceptance.
