1.Application:

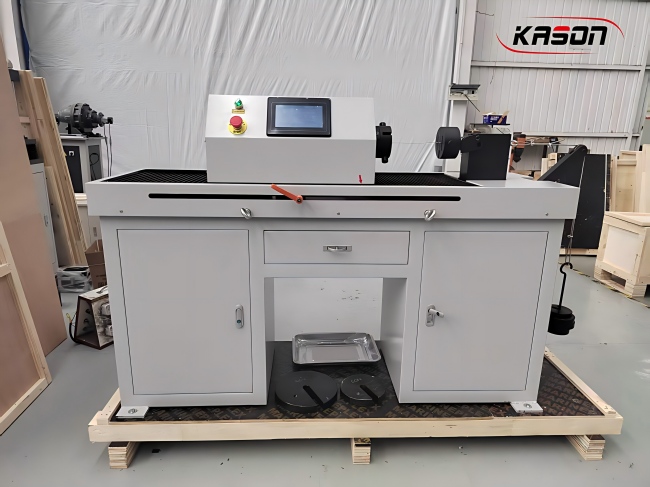

The Metal Wire Torsion Testing Machine is suitable for measuring the ability of metal wire with a diameter (or characteristic size) of 1.0- 10.0mm to withstand plastic deformation in one-way or two-way torsion and to display the surface and internal defects of the wire.
This machine is mainly used for the analysis of the mechanical properties of metal wires in the mechanics laboratories of colleges, universities, scientific research departments, and industrial and mining enterprises. It is also widely used for online inspection of production units; the main industries include high-speed steel lines,prestressed steel wire plants, and quality Supervision, scientific research institutes, highway transportation,construction industry, steel wire ropes, wires and cables, copper and copper alloy wires for electrified railways, copper contact wires and other production and use departments.
2.Standard:
GB/T 239.1-2012 "Metallic materials - Wires - Part 1 - Test methods for unidirectional torsion";
GB/T 239.2-2012 "Metallic materials - Wires - Part 2 - Test methods for bidirectional torsion";
ISO 7800:2003 "Metallic wires - Test methods for unidirectional torsion";
ISO 9649:1990 "Metallic wires - Test methods for bidirectional torsion";
GB/T 4909.4-2009 Test methods for bare wires - Part 4 - Torsion test;
GB∕T3428-2012 Galvanized steel wire for overhead stranded wires.
3. Selling Points:
1) High Precision & Stability
Adopts high‑precision photoelectric encoder & torque sensor, ensuring test accuracy ≤±1%.
Horizontal rigid structure, low vibration, stable rotation, no axial friction.
Automatic counting of torsion cycles, real-time data capture, no manual error.
2) Wide Application & Strong Adaptability
Suitable for steel, copper, aluminum, alloy wires from Φ0.1mm to Φ10mm.
Unidirectional / bidirectional torsion, adjustable clamping length & rotating speed.
Fully compliant with ISO 7800, ASTM A938, GB/T 239 international standards.
3) Intelligent & Easy Operation
Touch screen / digital LCD control, one-key setting, simple calibration.
Automatic stop when specimen breaks, unattended working available.
Data storage, print & export function, convenient for quality inspection & certification.
4) Durable & Maintenance-Free
High-strength alloy chucks, long service life, quick replacement for different diameters.
Silent motor drive, smooth running, low wear, long-term stable performance.
Compact design, space saving, suitable for laboratory & workshop use.
5) Cost-Effective & Reliable Quality
Stable performance, high repeatability, reduce retest cost.
Strict factory calibration, quality assurance, long service life.
Professional after-sales support, easy installation & operation.
4.Main functions:
4.1 The control interface is humanized, and different test states are intuitively visible;
4.2 You can set different speeds at will, and the speed change can be controlled in real time, with infinite speed regulation;
4.3 According to different test conditions, forward and reverse rotation can be achieved, and the number of turns can be set in a wide range;
4.4 The machine can be stopped immediately if the test breaks, with small errors;4.5 Safety protection: It has overcurrent, overvoltage and other protection functions.
