Application:

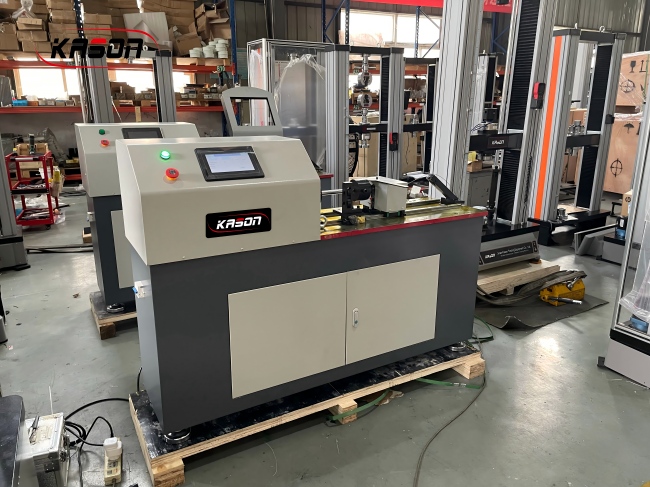

KASON CR-10 Metal Wire Torsion and Winding Test machine is mainly used to determine the metal wire, in one-way or two-way torsion with stand plastic deformation ability, the Test process can show the surface defects of the wire. The Testing Machine is loaded by a motor, and the rotary sensor detects the number of torsional turns and displays the test results. The winding function can be realized when the winding appendages are used.
Standards:
ISO 7802:1983 《Metallic materials — Wire — Wrapping test》
Key features:
1. Test speed: 15, 20, 30; 60 RPM (can be designed according to user requirements for stepless speed regulation), can meet the requirements of scientific research test;
2. Rotating chuck: torsion chuck can rotate around the axis of the specimen, rotating chuck speed is adjustable, speed is uniform and stable;
3. Chuck: positioning chuck can move along the axial direction, clamping fixture can ensure that the sample does not slip;
4. Ruler display: wire test length, indicated by the ruler on the table;
5. Display: the maximum number of display turns is 9999, and the test ring value automatically locks after the specimen breaks;
6. Lever-weight afterweight mechanism: can produce no more than 2% of the tension on the wire, in the test process, to ensure that the wire straight, or the wire after breaking off the stop, to ensure the accuracy of the data;
7. CAM mechanism: with the handle, drive the CAM, can make the wire clamping - straightening more convenient;
Specification:
Working type: Automatic loading
Winding direction: Forward or reverse
Display type: Touch screen display
Aluminum & Steel Wire diameter range:φ1.0-6.0mm
Copper Wire diameter range: φ1.0-15.0mm
Jaw set range: φ1.0-15.0mm
Jaw hardness: HRC50-60
Max. distance for two chuck: 500mm
Rotating speed: 15,30,60r/min
Speed error: <±10%
Size of Testing machine(length*width*height): 1500×500×600mm or custom
Weight of testing machine(Net weight): 146kg
Min reading value of turns number: 0.1
