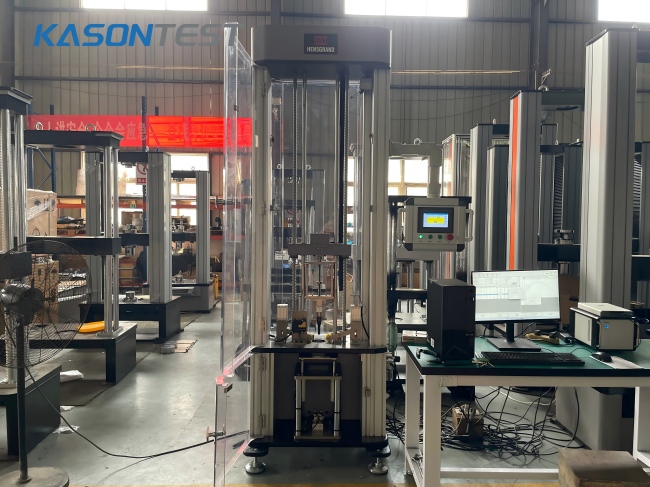

KASON laTest composite plate drop hammer impact Tester is mainly suitable for prefabricated damage Testing of composite plates, meeting various specifications of the aerospace and automotive industries. It uses impact force value sensors, test systems, and high-speed data acquisition cards to measure the load and deformation transient values of the impacted sample fracture process, that is, the impact absorption work, the force-displacement-energy curve of the impact process, and the characteristic points on the curve: slope discontinuity force F1, maximum contact force Fm, maximum force energy Wm, total impact energy Wt and corresponding displacement, so as to realize data analysis of the sample impact process, reflect the material's ability to resist dynamic impact loads, the force and deformation characteristics of the sample under impact loads, and the dynamic fracture toughness analysis of the material at high strain rates.
The mainframe frame is mainly composed of a base, a top plate, a guide light rod and an aluminum alloy column. The base is a frame structure composed of two upper and lower 45 steel plates and an aluminum alloy column, and the sample fixture can be placed according to the sample; the column is an aluminum profile, with four-point support to ensure the stability of the mainframe frame; the connection between the aluminum alloy column and the bottom plate and the top plate is screwed. Although the entire frame is high, it has a low center of gravity and good stability. The guide rail is a precision light rod with a chrome-plated hardened surface, good straightness and high precision. The upper and lower ends of the light rod are threaded and tightened at both ends to ensure the rigidity of the mainframe frame and the guide rail, while avoiding the possibility of loosening of the mainframe's connection parts due to vibration.
