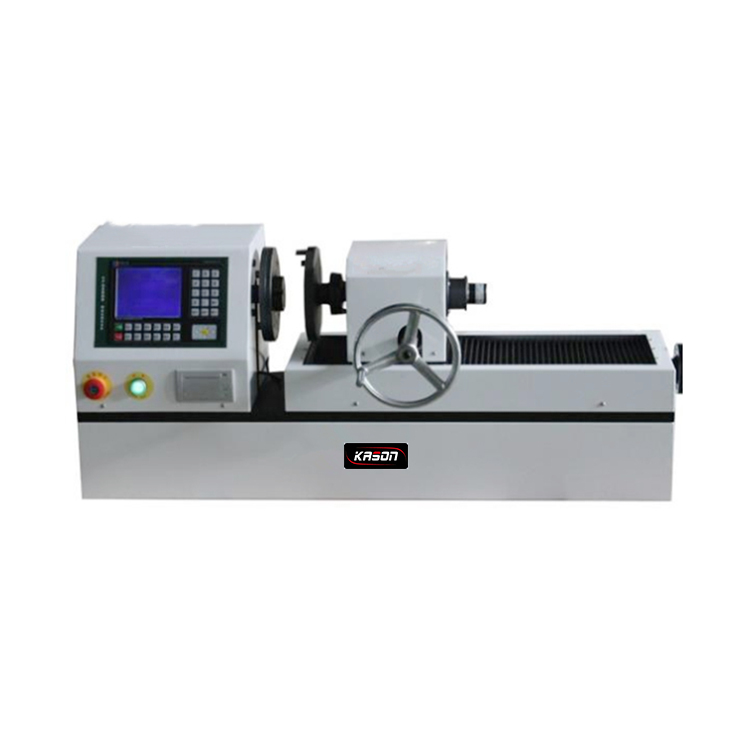

20nm Digital Manual Type Torsion Torque Spring Tester
Function
This series digital torsion spring tester is a kind of intelligent multi-functional measuring instrument used for testing and inspection of torsion spring. With simple operation, high precision, easy to carry, complete functions, widely used in all kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Specification
|
Model |
TNS-10P |
TNS-20P |
TNS-50P |
TNS-100P |
|
Max torque（N/m） |
10 |
20 |
50 |
100 |
|
Test class |
1 class |
|||
|
Torque test range(F·S) |
1%～100% |
|||
|
Relative error of torque indication |
±1% |
|||
|
Angle value accuracy (%) |
≤±1 |
|||
|
Angledisplay resolution(°) |
0.1 |
|||
|
Max torque angle |
99999° |
|||
|
Sample size |
0.1-200mm |
|||
|
Effective distance between chucks (mm) |
200 |
|||
|
Test rotating direction |
Two ways |
|||
|
Power |
220V±10%，50Hz |
|||
