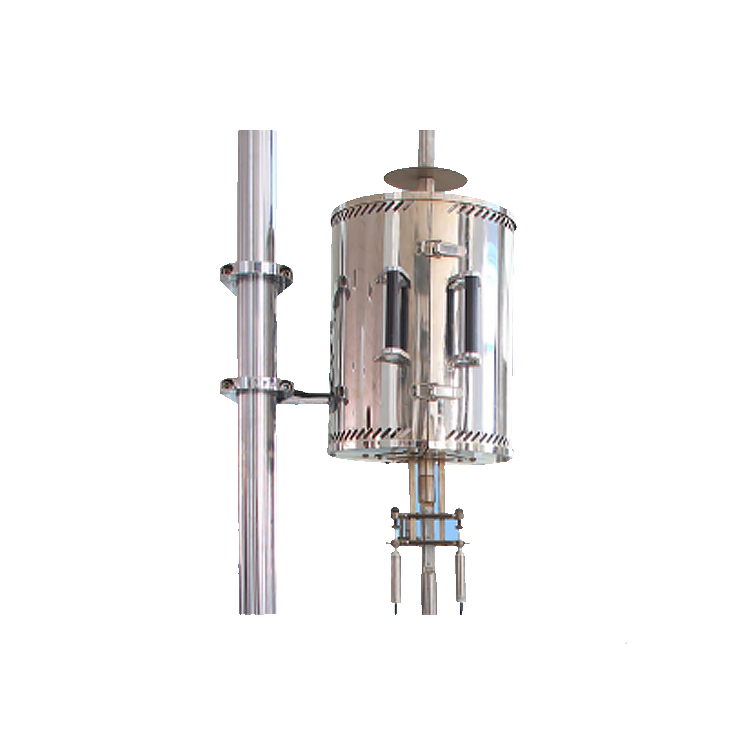

KSGL-1200 High Temperature Furnace
Application:
Used in GB/T4338 "High Temperature Tensile Test Method for Metal Materials", HB5195 "Metal High Temperature Tensile Test Method", GB/T2039 "Metal Tensile Creep and Durability Test Method", HB5150 "Metal High Temperature Tensile Durability Test Method" Strength inspection test in high temperature environment.
Technology parameter:
| Model | KSGL-1200 | ||
| Operating temperature | 300～1200℃ | ||
| Long-term operating temperature | 1000℃ | ||
| Heating element material | FeCrAl resistance wire | ||
| Heating body diameter | Φ1.2mm/ Φ1.5mm | ||
| Temperature measuring element | K thermocouple (including special compensation wire) | ||
| Number of heating body segments | 3 | ||
| Number of temperature measuring points | 3 | ||
| Temperature sensitivity | 0.1℃ | ||
| Temperature measurement accuracy | 0.20% | ||
| Heating zone length | 100mm/150mm | ||
| Test temperature（℃） | Temperature deviation | Temperature gradient | |
| 300-600 | ±3 | 3 | |
| Temperature accuracy | 600-900 | ±3 | 3 |
| ＞900 | ±3 | 3 | |
| Furnace inner size | Diameter* length:φ 90*300mm／φ 90*380mm | ||
| Dimensions | Diameter* length:φ320*380mm／φ320*460mm | ||
| Tensile fixture: | According to order | ||
| Temperature measurement and control system |
3 piece of smart meter (Xiamen Yudian) /1 piece of smart meter (EUROTHERM) |
||
| Operating Voltage | 380V±10% | ||
| Mains power | Limit power 5KW when heating up | ||
| Extension measure device | Bilateral extensometer | ||
| / Epsilon3448 / MF high temperature extensometer | |||
