1. Application:

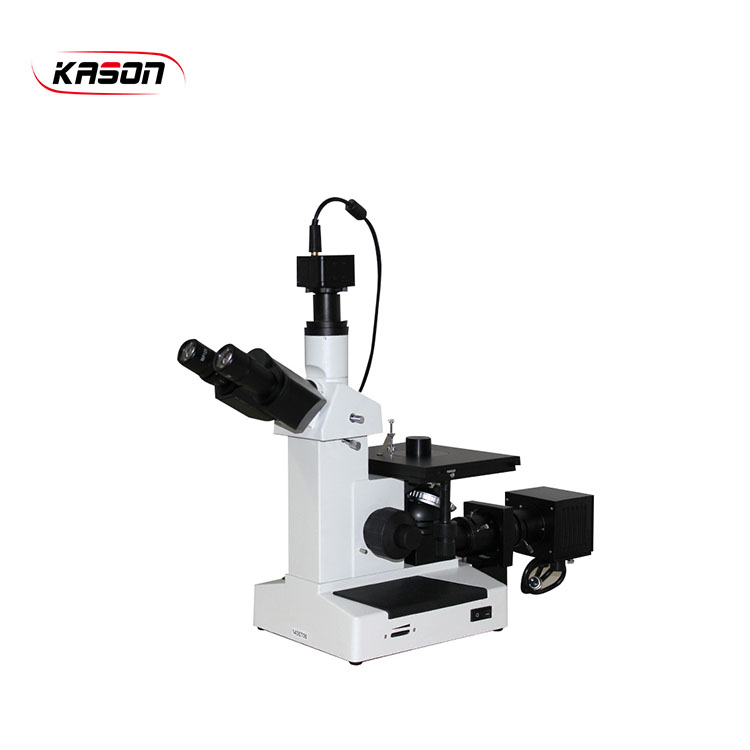

MODEL -4XC METALLOGRAPHIC MICROSCOPE is mainly used for metal identification and analysis of the internal structure of organizations. It is the important device which can be used to study the metallography of metal, and it is also the key instrument to verify the product quality in industrial application. This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
2. Main technical specifications:
Three eyepiece tube
Tilting angle: 30°
Adjustable range: 55-75mm
Eyepiece
Wide view eyepiece 10X (16mm)
Objective lens
Flat fielding achromatic
objective lens10X, 25X, 40X, 100X (oil)
Loading table
150 x 200mm
Moving range
vertical 15mm, horizontal 15mm
Objective lens (optional)
60X, 80X
Eyepiece (optional)
12.5X, 16X, 20X, 10X flat fielding
graduation eyepiece (grid value 0.1mm)
Photographic device (optional)
1. Image adapting lens, high resolution color CCD camera static and
dynamic capturing card, image analysis software, EPSON color jet printer
2. Digital camera, specific adapting lens
