1. Application:

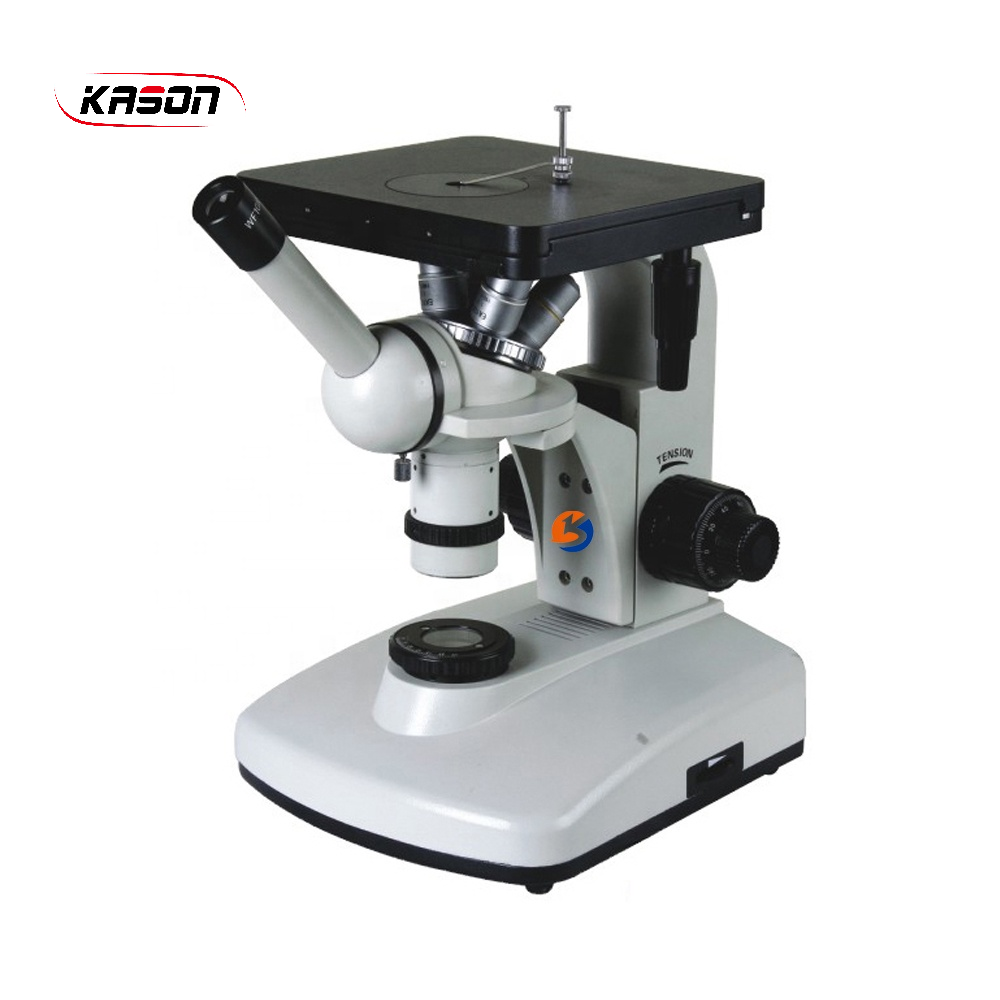

Metallographic Microscope (4XA) is mainly used for metal identification and analysis of the internal structure of organizations. It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify the product quality in industrial application. This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis,image editing,output,storage, management and other functions.
2. Main specifications:
1. Eyepiece:
Category
Magnification
View Diameter
Flat-field Eyepiece
10X
Φ18 mm
Flat-field Eyepiece
12.5X
Φ15 mm
Graduated Eyepiece
10X
Φ17 mm
Objective:
Category
Magnification
Numerical Aperture (NA)
System
Working Distance
Achromatic Objective Lens
10X
0.25
Dry
7.31 mm
Semi-flat-field Achromatic
Objective Lens
40X
0.65
Dry
0.66 mm
Achromatic Lens
100X
1.25
Oil
0.37 mm
2. Focusing mechanism: coaxial coarse micro system can do limit position and adjust the elastic 2.3.Single head,45º incline; Total magnification :100X--1250X. device, Micro focus scale value:0.002mm.
3.Micrometer:0.01mm/scale; 0.1mm, Scale reticle wide field of flat field eyepiece:WF10X.
4.Double mechanical platform:200mm×180mm, X-Y direction of movement: 70X50mm.
5.With Ø10 and Ø20mm hole of the working desk tray.
6.Coarse micro coaxial focusing device with rack and pinion mechanism. focusing range: 25mm, accuracy:0.002mm; handwheel platform location limitation.
7. Built-in dimmer 6V/20W Cora of halogen lamp lighting system.
8. Color filter: Blue,yellow,green,frosted color filter.
3.Optional:
3.1. Eyepiece:5X 15X 20X.
3.2. Objective:5X 20X 60X 80X.
3.3. High-resolution imaging system.
