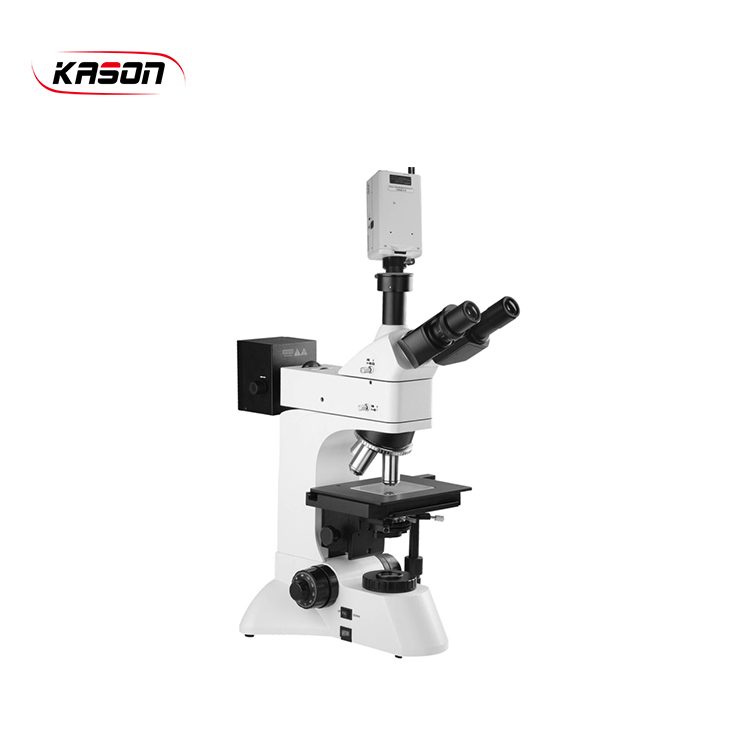

FL8500 Computer Type Trinocular Upright Multifunction Microscope

1.Introduction:

FL8500 Computer Type Trinocular Upright Multifunction Metallographic Microscope is the elite of the optical microscope technology, advanced photovoltaic technology, sophisticated computer imaging technology together and successfully developed a high-tech product.

Either manual observation metallographic images, and can be easily observed timely metallurgical image on a computer monitor, may at any time to capture the record metallurgical picture, then analyzing microstructure map, ratings, etc., you can also save or print high pixel photomicrographs.

2.Main Purpose:

FL8500 transflective multifunctional microscope suitable for microscopic observation of opaque objects or transparent objects.

The instrument configuration and transmission epi-illumination system, infinity long anomalies bright field / dark achromatic objective (no cover glass), wide-field eyepieces and built-in polarizer device, has image clarity, contrast is good, beautiful shape, easy to operate, is the ideal instrument for biology, metallurgy, mineralogy, precision engineering, electronics and other research. Suitable for schools, scientific research, factories and other departments.

FL8500 senior upright microscope, high-quality optics with a large field of view of the eyepiece, epi-illuminator, flat-field infinity long working distance and dark-field objective lens.

Semiconductor wafer inspection, solar wafer manufacturing, electronic information industry, metallurgical industry developed using as a senior industrial microscope.

Can be light and dark field observation, light falling shepian, DIC observation,widely used in factories, research institutions, universities to detection and analysis of solar wafers, semiconductor wafer inspection, circuit board, FPD and precision molds.

3.Features:

3.1.Wide field eyepieces and infinity long anomaly field shading achromatic objective (no cover

glass), large field of view and clear.

3.2.Coaxial coarse and fine focusing mechanism,coarse elastic adjustable,with limit locking device,

micro-grid values: 2μm.

3.3.Stage travel up to 30mm.

3.4.Configuring Epi and transmissivity two sets of lighting systems, can be microscopically

observed for Opaque objects or transparent objects respectively.

3.5.Trinocular tube, can switch to normal viewing with polarized light observation, can be 100%

transmittance photography.

4.Main Specifications:

5.System Configuration:
