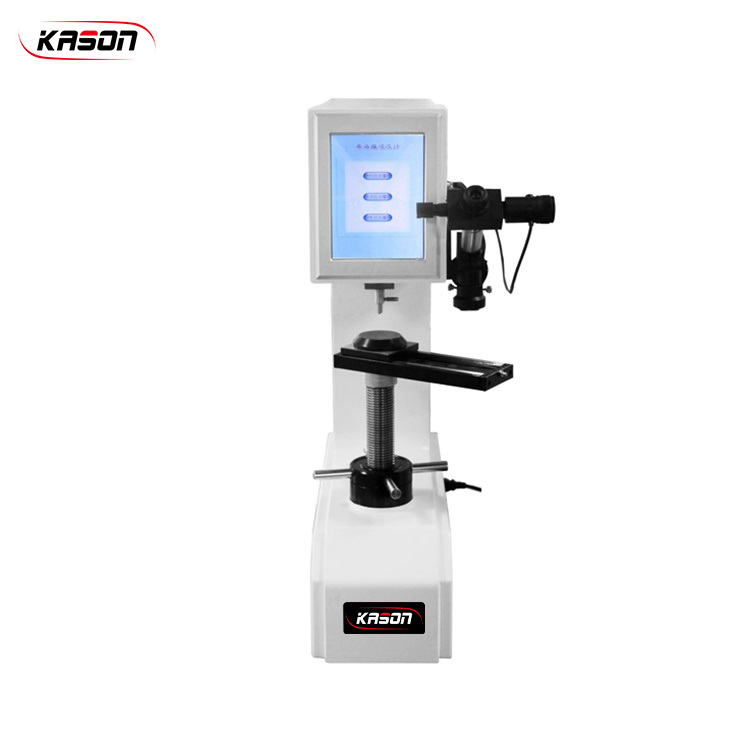

HTBRV-187.5STF Universal Hardness Tester

Application:

suitable to determine the Brinell, Rockwell and Vickers hardness of ferrous, non-ferrous metal and hard alloy.

Technic Parameter：

Model

HTBRV-187.5STF

Test force

Rockwell

588, 980, 1471N（60,100,150Kgf）

Brinell

31.25、62.5、187.5kgf（306.5、612.9、1839N）

Vickers

30、100kgf（ 294.2、980.7N）

Brinell scale

HBW2.5/31.25 、HBW2.5/62.5 、HBW2.5/187.5

Rockwell scale

HRA、HRB、HRC

Vickers scale

HV30、HV100

Hardness measurement range

Rockwell: 20-95HRA、10-100HRBW、20-70HRC

Brinell: 5-650HBW

Vickers: 5-3000HV

Magnification

100X, 50X, 25X

Max height of specimen

Rockwell：200mm、 Brinell  Vickers：180mm

Distance from the center of the indenter to the fuselage

160mm

Dimension

550*290*730mm

Weight

About 80Kg

Power

AC220V+5%，50-60Hz, single phase
