Application:
Heat treatment, carbide, quench hardened layer,
the surface coating layer, steel, non-ferrous metal and small and thin shape
parts, etc.
Technical Parameters :

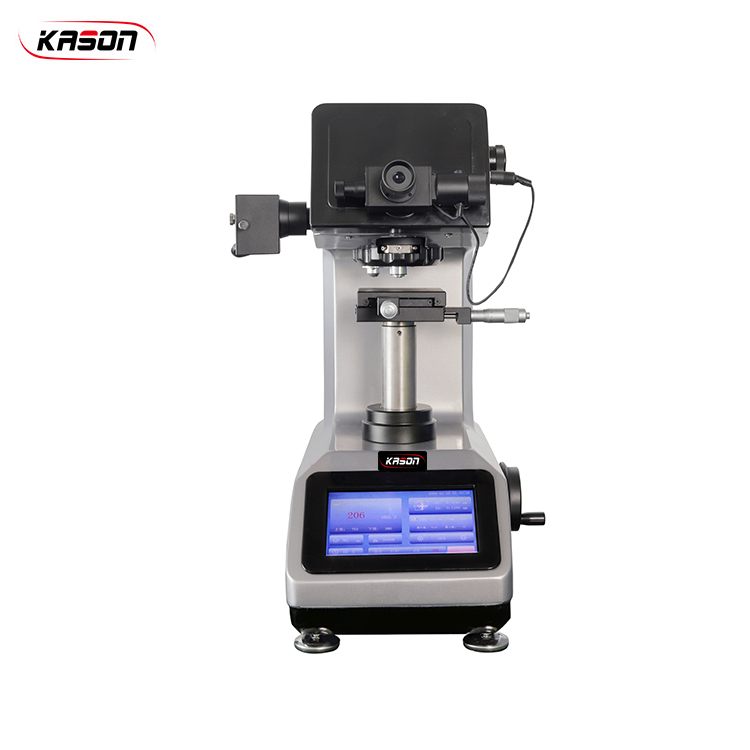

Model
HTV-5/10/30/50
HTVS-5/10/30/50
HTVS-5/10/30/50T
7HTV-5/10/30/50T
Display model
Small LCD digital display
Big LCD digital display
touch screen
Big touch screen
Turret Type
Manual
Direct display
Test force
-5
-10
-30
-50
0.3Kgf(2.91N),
0.3Kgf(2.91N), 0.5Kgf(4.9N), 1Kgf(9.8N),
1.0 Kgf(9.8N)
1.0Kgf(9.8N)
0.5Kgf(4.9N),
3Kgf(29.4N), 5Kgf(49.0N)
2.0Kgf(19.6N)
2.0Kgf(19.6N)
1Kgf(9.8N),
10Kgf(98.0N)
3.0Kgf(29.4N)
2.5Kgf(24.5N)
2Kgf(19.6N), 3Kgf(29.4N),
5.0Kgf(49.0N)
5.0Kgf(49.0N)
5Kgf(49.0N)
10.0Kgf(98.0N)
10Kgf(98.0N)
20.0Kgf(196N)
20Kgf(196N)
30.0Kgf(294N)
30Kgf(294N)
50Kgf(490N)
Loading and unloading mode
Automatic(loading,duration,unloading)
Conversion Scale
Rockwell, Superficial Rockwell, Brinell
Min Measuring Unit
0. 5μm
0.125μm
Total zoom multiple
Observe 100X
Magnification of Microscope
Measuring 200 x
Dwell Time
Adjustable 1 to 60 seconds
Max. Height of Specimen
175mm
175mm
175mm
175mm
Distance from indenter to wall
135mm
135mm
135mm
135mm
Depth at center line
135mm
RS232,Built-in print, data statistics
NO
YES
YES
Power Supply
AC220V±5%,50~60Hz
