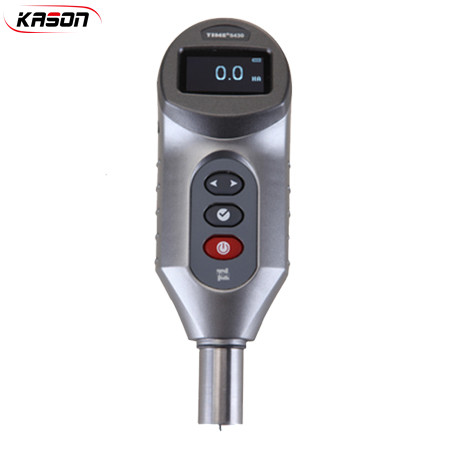

Digital Shore Hardness Tester

Application:

TIME®5430 Shore A hardness tester for testing the hardness of soft rubber, plastics and other elastomeric materials,TIME®5431 Shore D hardness tester for testing the hardness of hard plastics and rubbers.

Product Description:

It adopts LVDT displacement sensor, which is accurate and can work in harsh environment

Automatic Zero point calibration.

Three work modes to meet varied testing requirements: real-time, peak-value-lock and timing-lock.

Store 200 average lock values.

Technic Parameter:

Model

TIME®5430

TIME®5431

Test scale available

Shore A

Shore D

Standards

DIN53505,ASTM D2240,ISO 7619,JIS K7215

Display

Hardness result, Average value, Max value (Peak value lock), Battery indication

Data output

USB

Measuring range

0~100HA

0~100HD

Tolerance

±1HA

±1HD

Display resolution

0.1HA

0.1HD

Power supply

Built in 3.7V rechargeable battery

Operating temperature

0~40ºC

Continuous working time

20 hours

Dimensions (mm)

173×56 ×42

Weight (g)

175
