Rebar Cold Reverse Bending Strength Testing Equipment
Usage:

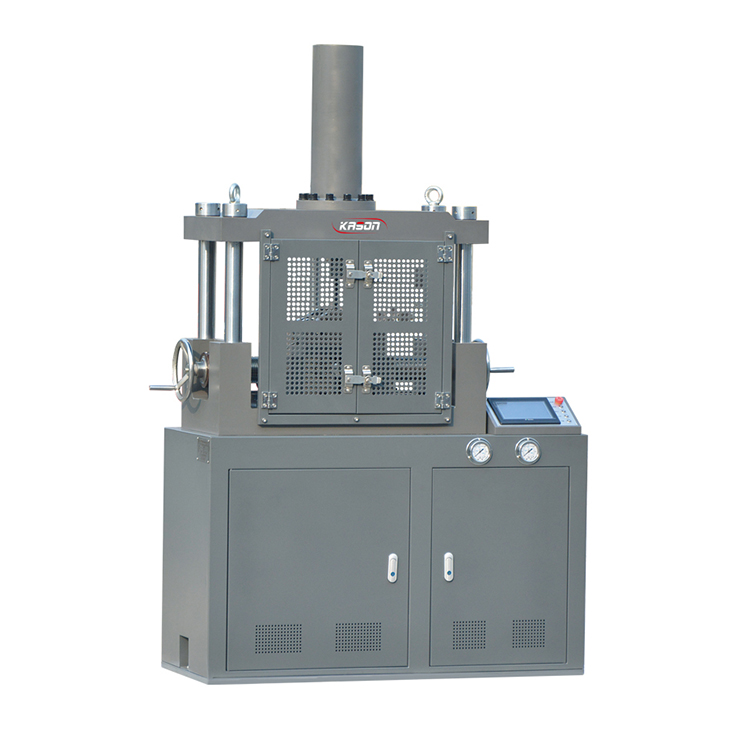

The KBT-300A bending tester is driven by a hydraulic power source. It consists of a test main unit, an oil source (hydraulic power source) and a standard bending head. The maximum test force is 300kN.Parameters:
| Project / indicator / model | KBT-300A |
| Maximum thrust | 300kN |
| Working operation | 300mm |
| Max working pressure | 25Mpa |
| Bending angle range | 0-180° |
| Bending circle sample diameter | Φ6-Φ50mm |
| Bending head diameter | Φ6-Φ128mm |
| Maximum distance of rollers | 300 mm |
| Cylinder loading speed | About 120mm/min |
| Main engine dimensions | 1200 mm×550 mm×2000 mm |
| The engine power | 1.1kW |
| The host weight | About 1100 kg |
