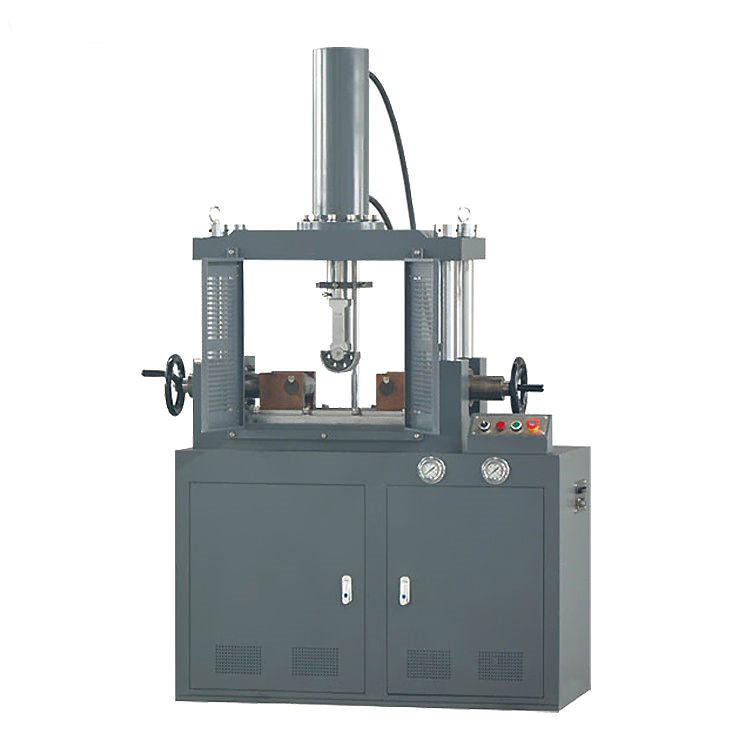

180 Degree 40mm Diameter Steel Rebar Reverse Bending Testing Machine
Application:
This type of testing machine is designed to perform bending test on metallic materials, like rod steel, plate steel and rebar. Bidirectional hydraulic loading, easy to bend specimen with diameter less than 40mm to 180°.
Specifications:
|
MODEL |
KBT-160 |
|
Max pushing force(kN) Maximum thrust |
160 |
|
Working operation(mm) |
300 |
|
Max working pressure(Mpa) |
25 |
|
Bending angle range |
0-180° |
|
Bending circle sample diameter(mm) |
Φ6-Φ32 |
|
Bending head diameter(mm) |
Φ6-Φ128 |
|
Maximum distance of rollers(mm) |
300 |
|
Cylinder loading speed(mm/min) |
About 120 |
|
Main engine dimensions(mm) |
1200 ×550 ×2000 |
|
The engine power(kW) |
1.1 |
|
The host weight(kg) |
About 1100 |
