Application:

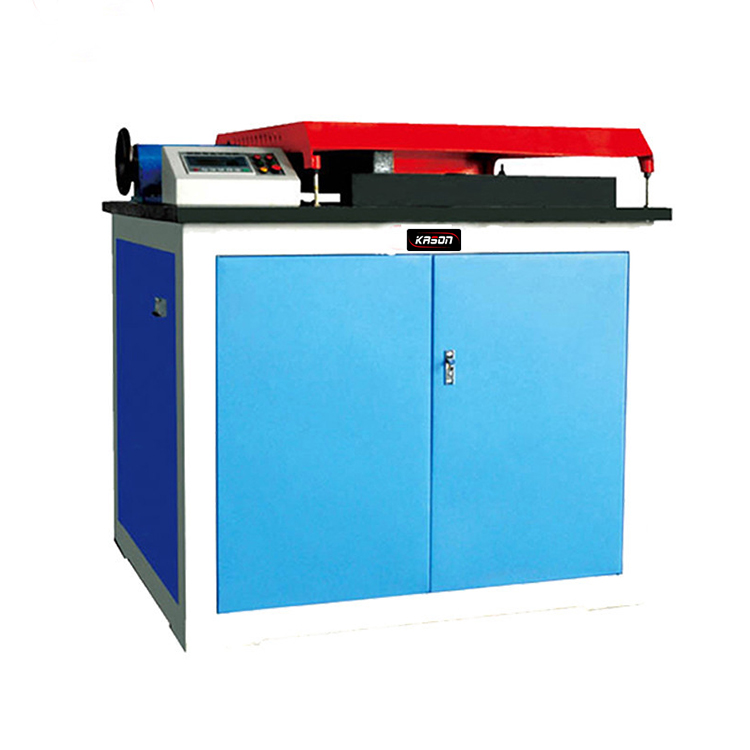

The Bending Testing Machine is special equipment to do bending test for reinforce bar, steel bar and pipe. It
can do bending test in both directions according to standards requirement. It conforms to standards ASTM
A615-89, ASTM A615M-89, ISO 7438:1985, and ISO8491:1986 (E).

Specifications:

Model GW-40B GW-50B
Bending Diam Of Steel Bar Ф6-Ф40mm Ф6-Ф50mm
Forward Bending Angle 0°~180° (the angle can be set freely in the range)l
Reverse Bending Angle 0°~25° (the angle can be set freely in the range)
Roating Speed Of Working Table(r/min) <3.7 <3.0
Diameter Of The Working Table Ф580mm Ф860mm
Motor Power 1.5kw 3kw
