Steel Bar/ Pipe Rebar Tube Deformed Wire Reverse Bending Strength Testing Machine price
1.Application:

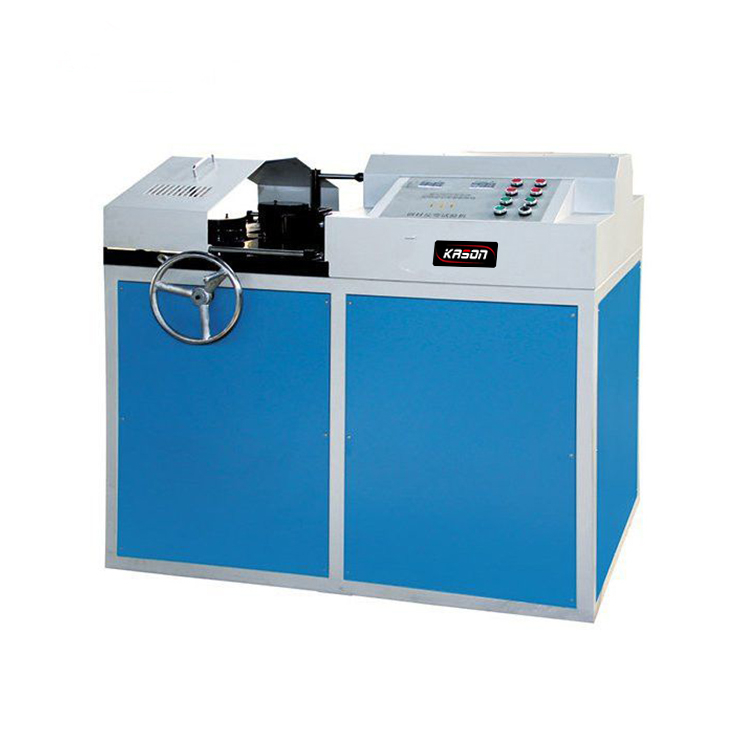

GWY-40A Hydraulic Bending And Re-bending Testing Machine is a special equipment to carry on bending test for reinforce bar, steel bar and pipe.It can do bending test with both directions according to standards requirement.
It conforms to standards ASTM A615-89, ASTM A615M-89, ISO 7438:1985, ISO8491:1986(E).
2.Technical Specifications:
| Model | GWY-40A |
| Diameter Range Of Bars & Pipes | Ф8~Ф40mm |
| Bending Angle | 0°~180° |
| Max. Bending Test Speed | < 400 mm/min |
| Bending Core Diameter | 36, 42, 48, 54, 56, 60, 64, 66, 72, 75, 80, 112 mm |
| Piston Stroke | 400 mm |
| Dimension | 1350*680*1020 mm |
