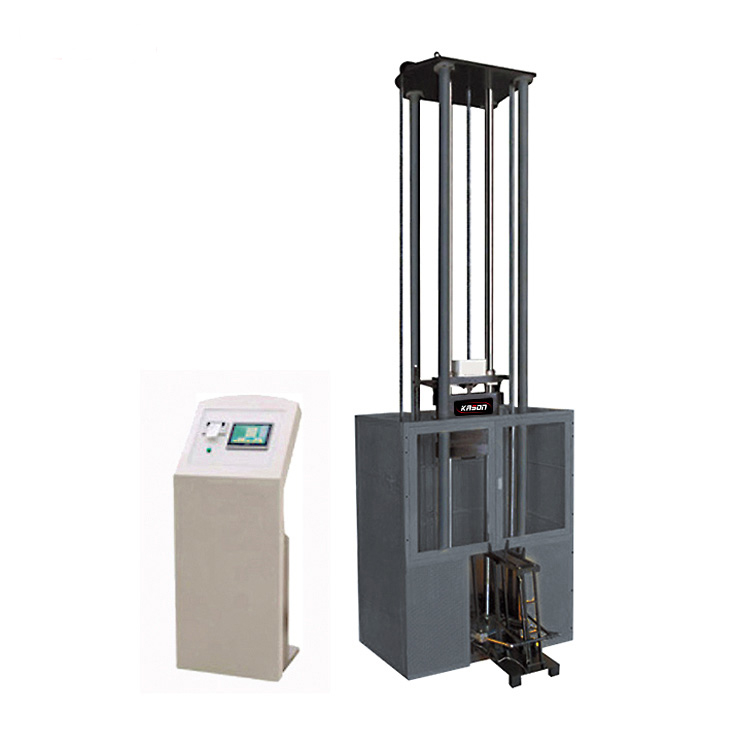

KS-1500 Drop Impact Strength Testing Machine

1.Function

The single-arm drop impact strength testing machine is designed to test falling damage of packaging product,

and assessment of impact during transportation or handling process.

2.Standard

ISO2248 JISZ0202-87 GB/T4857.5-92

3.Characteristics

1. Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.

2. With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.

3. Damping screw lifting mechanism, preventing drop institution unexpectedly glide.

4. Pneumatic automatic chain, preventing swing arm unusual break away.

4.Parameters

1. Drop height range(mm):300-1500 adjustable

2. Specimen max.weight(kg):80

3. Thickness of bottom plate:10mm (solids steel plate）

4. Specimen max. size(mm):800*800*1000

5. Drop mode:Freedom
