1. Application
Model
PITD302T
Display type
Digital display
Max. impact energy
300J
The distance between the pendulum shaft and impact point
750mm
Impact speed
5.2m/s
Raised angle
150°
Standard span
40+0.2mm
Round angle of the jaw
R1- 1.5mm
Round angle of impact edge
R2-2.5mm,R8±0.05(special order)mm
Angle accuracy
0.1°
Standard specimen dimension
10mm×10(7.5/5)mm×55mm
Thickness of impact knife
16mm
Dip angle of supporting surface of supports
11°
Cooling way
compressor
Capacity of sample box
20
Range of low temperature
room tempeature --60°c/80°c
Range of low temperature
fluctuation ±0.5°C grades 1°C
Speed of sending specimen
≤2S
Power supply
3phs, 380V, 50Hz Or 220V,60Hz
Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materials under dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.

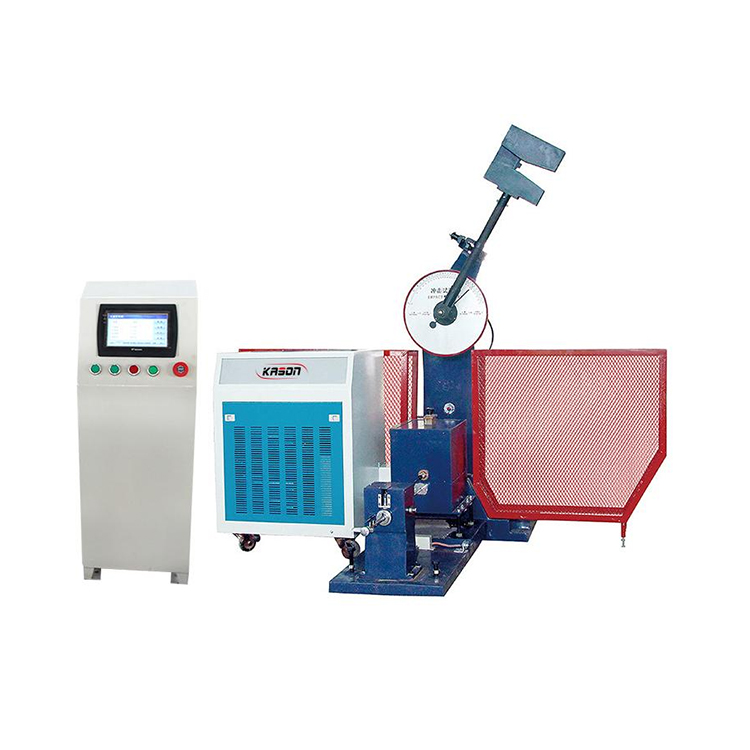

PITD-T Series Digital Low Temperature Impact Testing Machine: adopting PLC Controller, the results can be displayed on both LCD digital.screen and dial gauge. The test results also can be printed out with micro-printer. Low temperature system uses refrigeration compressor technology to achieve uniformity of the sample auto-cooling, with the use of heat balance principle and cycle mixing method.
2. Specification
