Application
It has widely application, for a variety of long, short sample test, especially for large, long length sample. Common test types such as: wire rope tensile test, lifting belt tensile test, safety rope tensile test, power fittings destruction test, etc

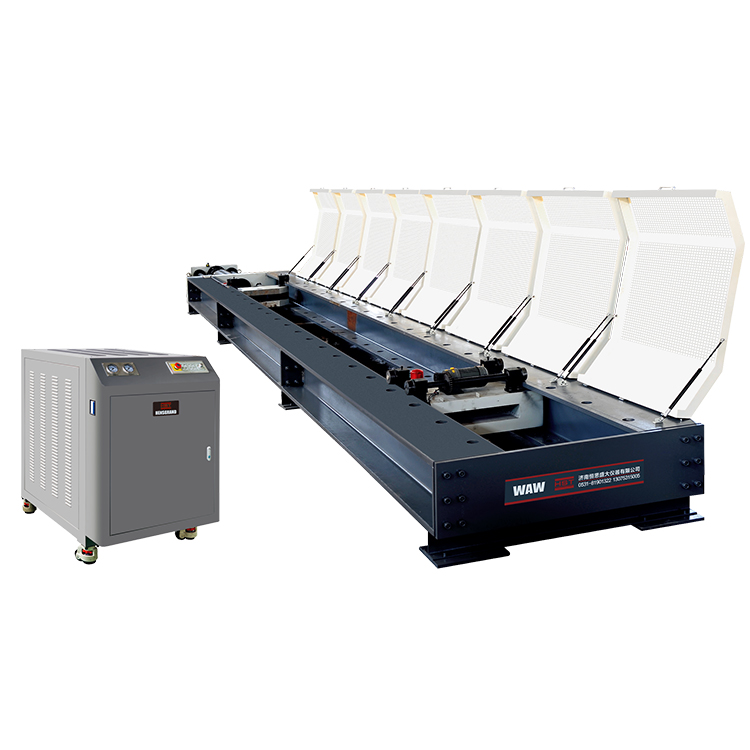

The machine adopting computer control, hydraulic servo drive, hydraulic single-pole bidirectional cylinder loading, precision spoke load sensor signal measuring force value, high accuracy sensor measurement displacement.
Smooth loading, accurate measurement, rapid control response, can achieve load control and displacement (speed) control, a variety of curve form. Can choose (superposition or a single display), can easily and accurately achieve the load, displacement and other digital calibration and verification, with full load protection and position protection, test data can be accessed arbitrarily and can re-analyze data and curves, including local amplification and data re-editing, test methods can be programmed and stored or read, and print out the test reports and curves
Safety Device
1.1 Stroke protection: Machinery, computer double protection, prevent over preset
1.2 Force protection: system setting
Emergency stop device: handing emergencies
Specifications
Model |
WAL-1000 |
Max. Load(kN) |
1000 |
Load accuracy |
Class 1 |
Load range |
2%~100%F·S
|
Load resolution(kN) |
1/300000 |
Resolution of displacement |
0.01mm |
Max tensile space |
10000mm |
Cylinder piston stroke |
1500mm |
Displacement measuring range |
0~1000mm |
Displacement accuracy |
±1% |
Range of stress loading |
1kN/s~100kN/s |
testing speed (mm/min) |
1~200 |
Piston speed |
0.1-250mm/min |
Power supply |
380 V / 3 phases 60 Hz. |
