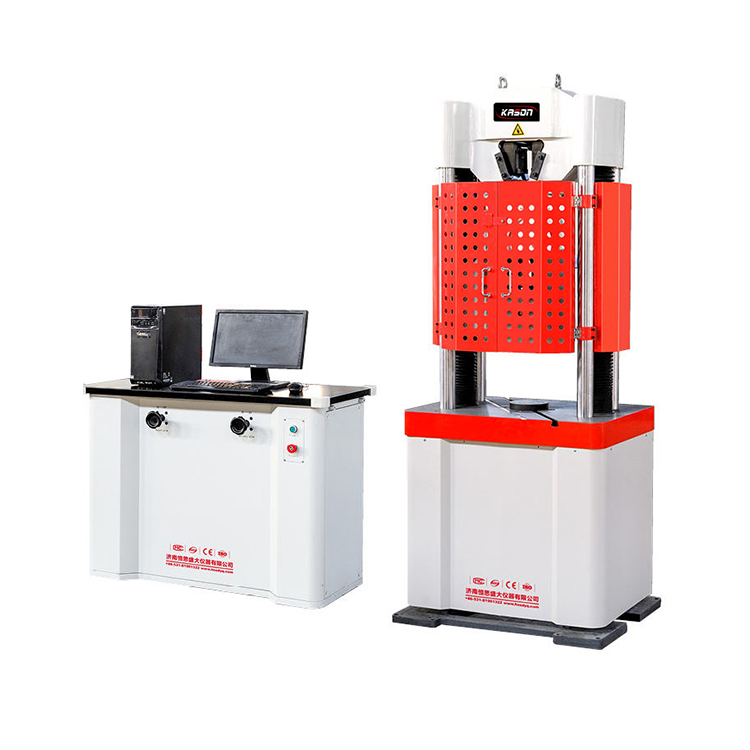

HUT-E Computer Display Hydraulic Universal Testing Machine
1. Application:
HUT-E series (Dual space) hydraulic Universal Testing Machine is ideal for high-capacity tension, compression, bend/flex, and shear testing. These frames feature dual spaces so users can quickly change between tension and compression testing without having to remove heavy fixtures.
2. Specification:
|
Model |
HUT105E |
HUT305E |
HUT605E |
HUT106E |
|
Frame Type |
4-Column 2 screw construction |
|||
|
Max. Load(kN) |
100 |
300 |
600 |
1000 |
|
Load Accuracy |
Class 1/ Class 0.5(optional) |
|||
|
Load Range |
2%~100%FS |
|||
|
Load Resolution |
1/500000 |
|||
|
Deformation Measurement Range |
2%~100%FS |
|||
|
Deformation Accuracy |
≤± 1%/0.5 |
|||
|
Displacement Resolution |
0.001mm |
|||
|
Displacement Error |
≤±0.5% |
|||
|
Testing speeds (mm/min) |
0.1~125 |
|||
|
Max. Piston Stroke(mm) |
200 |
|||
|
Max. Tension Test Space(mm) |
600 |
600 |
600 |
600 |
|
Max. Compression Test Space(mm) |
500 |
500 |
500 |
500 |
