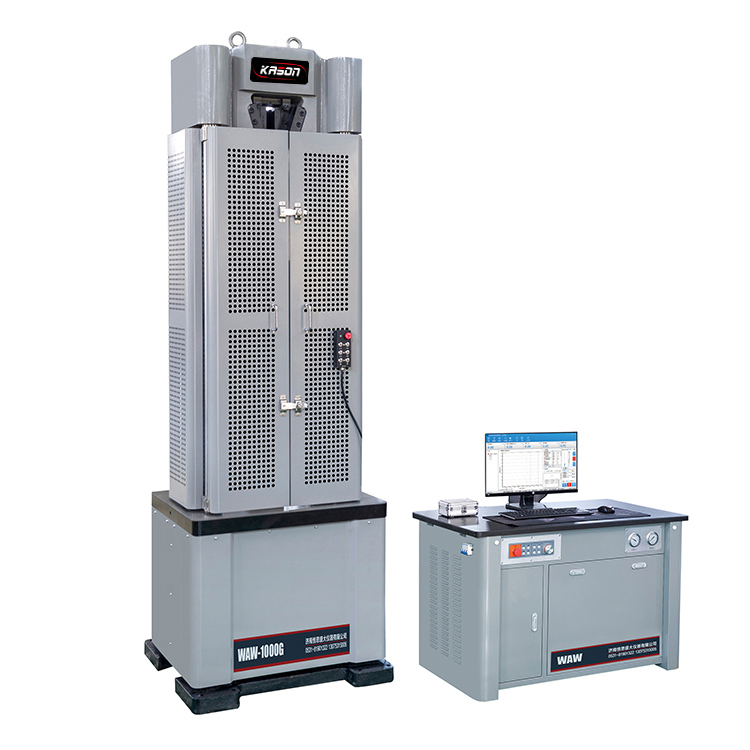

Electro-hydraulic Floor Bench Material Laboratory Jinan Universal Testing Machine
1. Application
The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.2. Standards
ISO,ASTM,DIN,JIS,etc.
3. Main Specifications:
| Model | WE-600D |
| Structure | 6 column |
| Crosshead lifting Method | Nut rotate |
| Control way | loading process manual control |
| Max. Load(kN) | 600KN |
| Load accuracy | ≤±1% |
| Load range | 2%-100%FS |
| Load resolution | 0.01kN |
| Piston speed | 0-90mm/min |
| Crosshead lifting speed | 270mm/min |
| Max. tension test space(mm) | 650 |
| Max.Compression Test Space()mm) | 500 |
| Column clearance (mm) | 475 |
| Max.piston stroke (mm) | 250 |
| Clamping method | Optional/Hydraulic clamping(Optional) |
| Round specimen clamping range (mm) | Φ13-Φ40 (Φ6-Φ13 , Φ40-Φ50 Optional ) |
| Flat specimen clamping range (mm) | 0-15 (15-30 Optional) |
| Flat specimen clamping width (mm) | 80 |
| Compression platen size (mm) | φ160 |
| Span of bending rollers (mm) | 450 |
| Width of bending rollers (mm) | 120 |
| Power supply | 3-phase,AC380V, 50Hz（can be customized） |
| Weight(kg) | 1200 |
