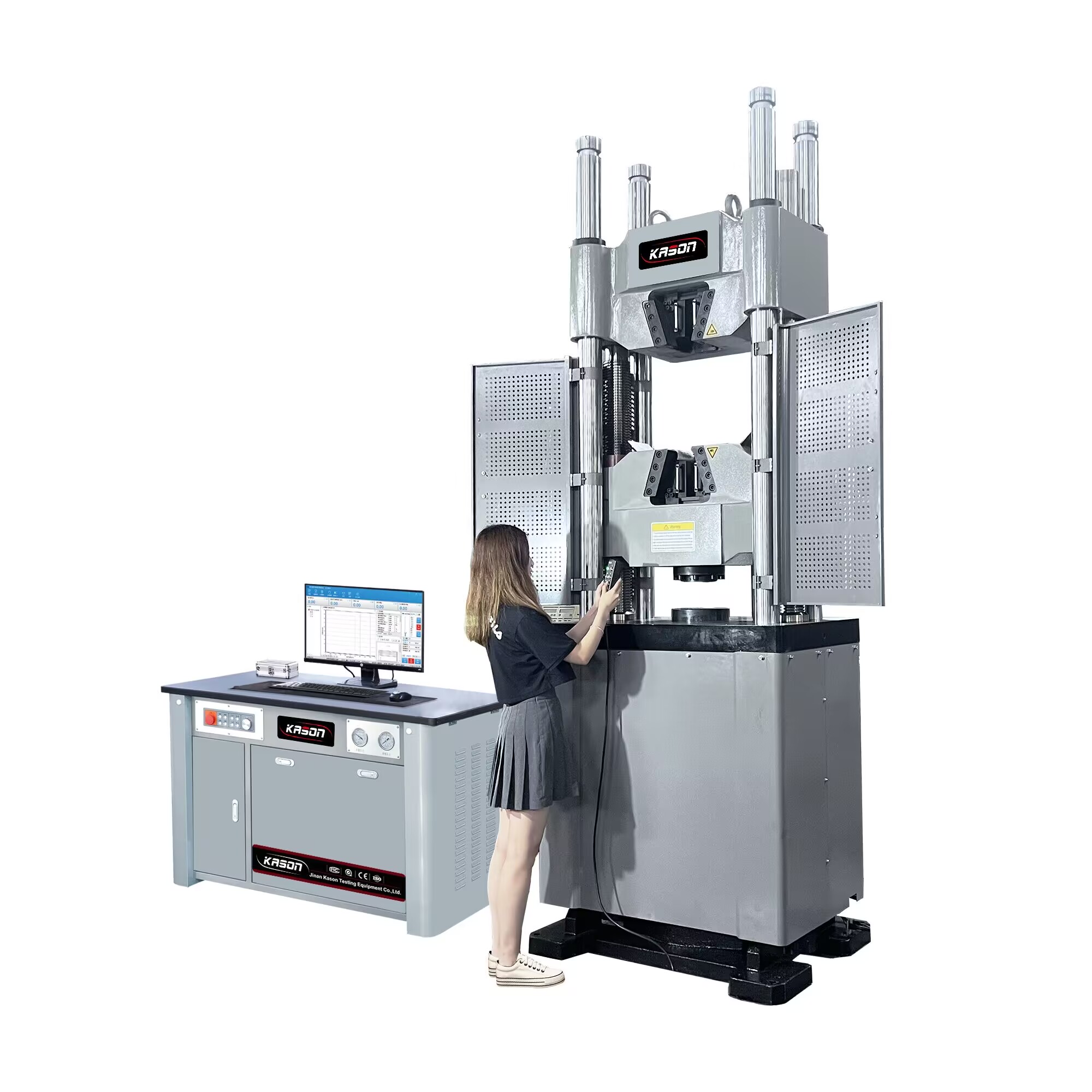

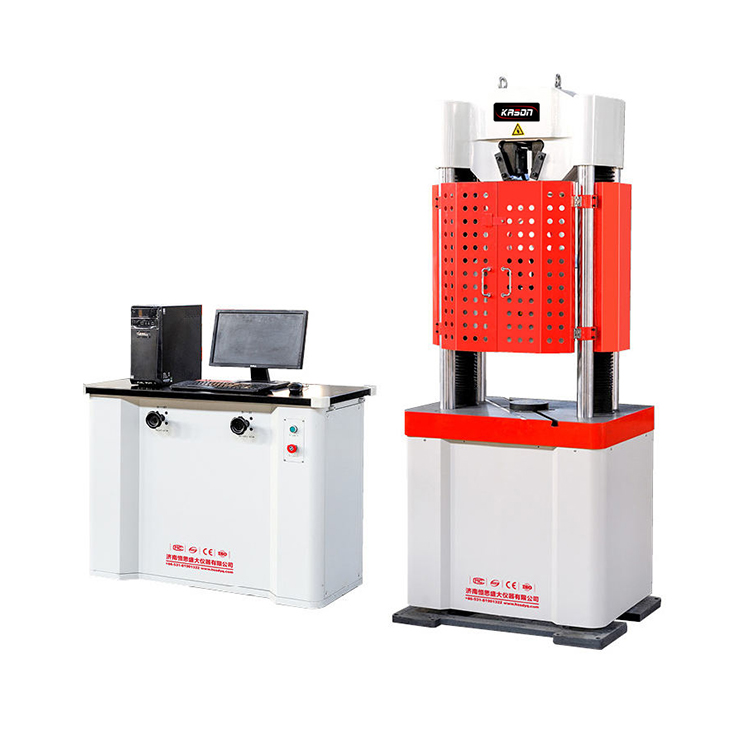

WAW-100/300/600/1000/2000 Computer Control UTM Servo Hydraulic Universal Testing Machine
1.Application:
It is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories,universities and institutes for material properties research and quality control.
2.Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3.Main specifications
|
Model |
HUT305S HUT305E HUT305W
|
HUT605S HUT605E HUT605W
|
HUT105S HUT105E HUT105W
|
HUT126S HUT126E HUT126W
|
|
Max. Load(kN)
|
300 |
600 |
1000 |
1200 |
|
Load Accuracy |
Class 1/ Class 0.5 |
|||
|
Load Range |
2%~100%FS
|
|||
|
Load Resolution |
1/350000 |
|||
|
Deformation Measurement Range |
2%~100%FS |
|||
|
Deformation Accuracy |
≤± 1% |
|||
|
Displacement Resolution |
0.001mm |
|||
|
Displacement Error |
≤±0.5% |
|||
|
Testing speeds (mm/min)
|
0.1~123
|
0.1~123
|
0.1~70
|
0.1~70
|
|
Max. Piston Stroke(mm) |
200 |
200 |
200/250 |
250 |
|
Max. Tension Test Space(mm) |
780 |
900 |
950/980 |
930 |
|
Max. Compression Test Space(mm) |
550 |
650 |
700 |
640 |
|
Column Effective Spacing(mm) |
485 |
500 |
560 |
610 |
|
Clamping Method |
Manual clamps(S series) Hydraulic Automatic Clamp(E and W series) |
|||
|
Flat Specimen Clamping Width(mm) |
80*80 |
90*90 |
100*100 |
120*110 |
|
Compression Plate Size |
Φ 160mm |
|||
|
Bending Roller Distance |
450mm |
|||
|
Width Of Bending Rollers |
120mm |
|||
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
|||
