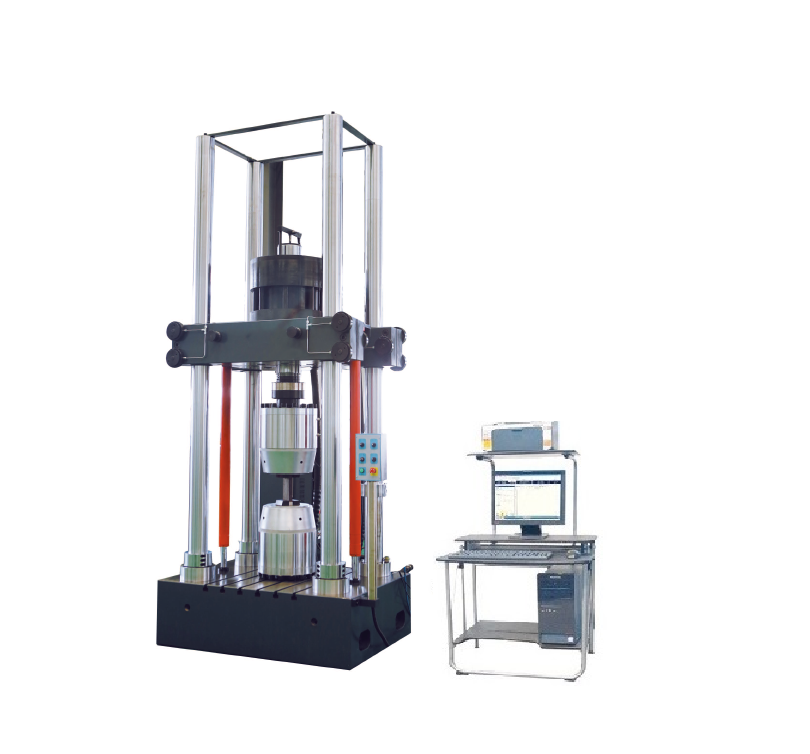

The machine adopts electro-hydraulic servo automatic control technology, and the length of table is up to 3.6 meters. It is suitable for dynamic and static characteristics test and fatigue life test on various metal components, wood, structural parts and parts.
1) Maximum test force: +/-250kN;
2) Maximum displacement of the actuator: ±125mm;
3) Main test wave forms: sine wave, triangle wave, square wave, half sine wave, semi-triangle wave, semi-square wave, ramp wave, etc.;
4) Frequency range: 0.01-35Hz;
5) Effective table size: 1000mm × 3600mm;
6) Maximum test space: 2000mm;
7) Optional accessories (graphic is wood bending test).
1) Maximum test force: +/-250kN;
2) Maximum displacement of the actuator: ±125mm;
3) Main test wave forms: sine wave, triangle wave, square wave, half sine wave, semi-triangle wave, semi-square wave, ramp wave, etc.;
4) Frequency range: 0.01-35Hz;
5) Effective table size: 1000mm × 3600mm;
6) Maximum test space: 2000mm;
7) Optional accessories (graphic is wood bending test).
