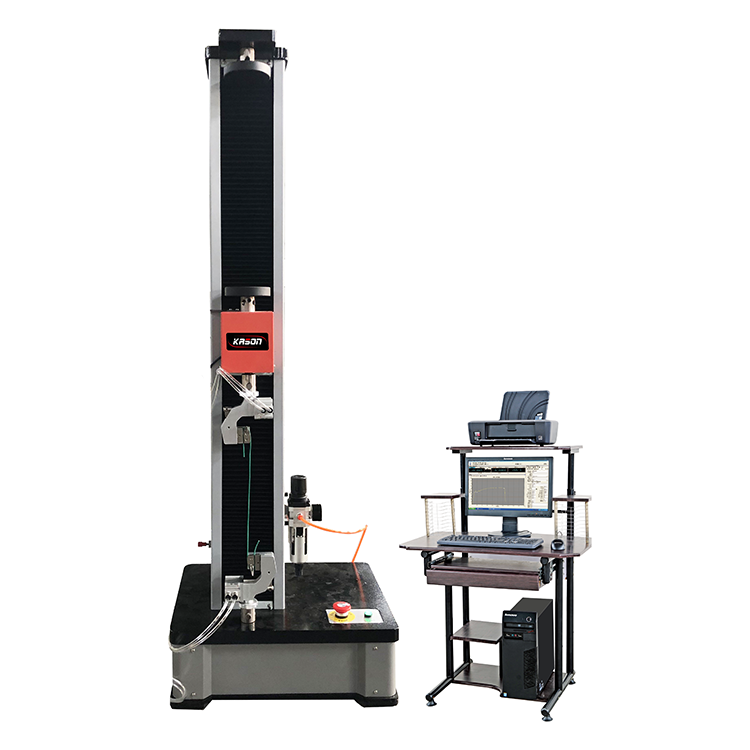

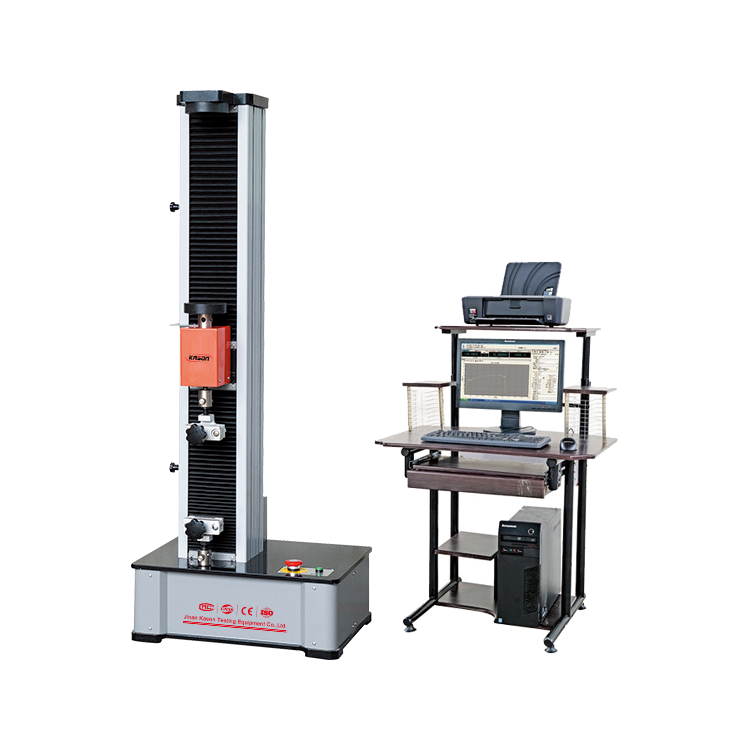

WDW-0.1/0.2/0.3/0.5/1/2/3/5 Computerized Single Column Electronic Universal Testing Machine
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standard:
ASTM, ISO, DIN, GB and other international standards.
Main Technical Parameters:| Model | WDW-01/02/03/051/2/3/5 |
| Max. Load | 100N-5 KN |
| Structure | Single Column Double Spaces |
| Control Method | Computer Control |
| Load Accuracy | 1 Class |
| Load Range | 2%~100% FS (0.02KN~1KN) |
| Displacement Resolution | 0.01mm |
| Test Speed | 0.05~500mm/min |
| Tensile Space | 600mm |
| Compression Space | 600mm |
