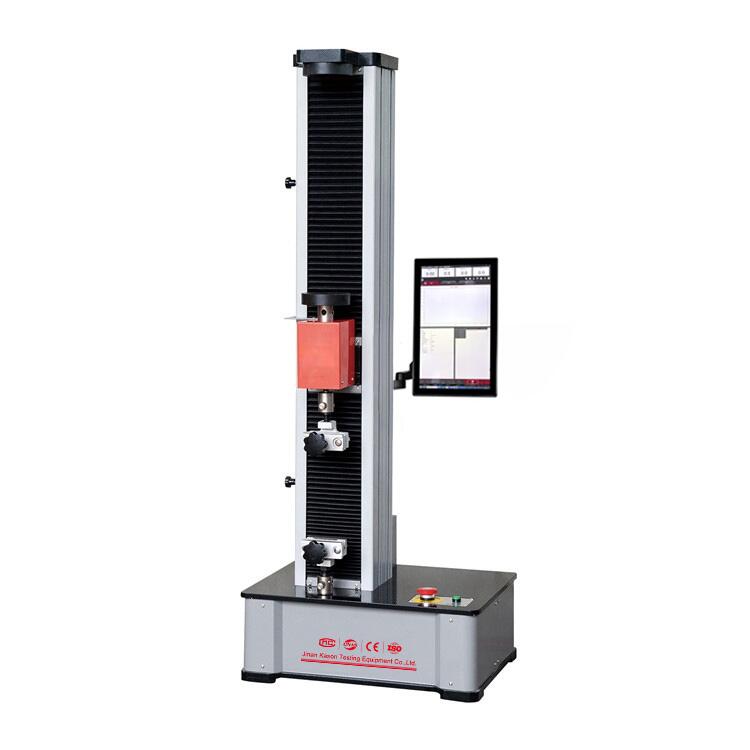

WDS-1/2/3/5 0.1-5KN Touch Screen Single column Electronic Universal Testing Machine
Application:
It is applicablefor wide range of material for tension, compression, bending, shearing and low cycle test.Suitablefor metal, rubber, plastic, spring, textile, and components testing.It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standard:
ASTM, ISO, DIN, GB and other international standards.
Main Technical Parameters:
Model
KASON ETM102S/ ETM202S/ ETM502S/ ETM103S/ ETM203S/ ETM503S
Structure
Single column double spaces
Max. Load(kN)
0.1, 0.2, 0.5，1, 2,5
Material
All aluminum alloy surface spray painting shell
Load accuracy
ISO 7500Class1
Load range
2%～100%F·S
Load resolution
1/ 50000
Resolution of displacement
0.01mm
Test speed(mm/min)
1-500stepless arbitrary setting
Speed accuracy
within ±1% set speed
E-Tensile space(mm)
600（can be customized）
E-Compression space(mm)
600（can be customized）
D-Test width(mm)
100
F-Beam travel distance(mm)
772
H-Workbench thickness(mm)
26
G-Base height(mm)
158
Power supply
AC220V±10%，50Hz/60Hz(can be customized)
