ASTM d 412 d 7269 100KN 10ton Electronic static universal tensile testing machine

Introduction:

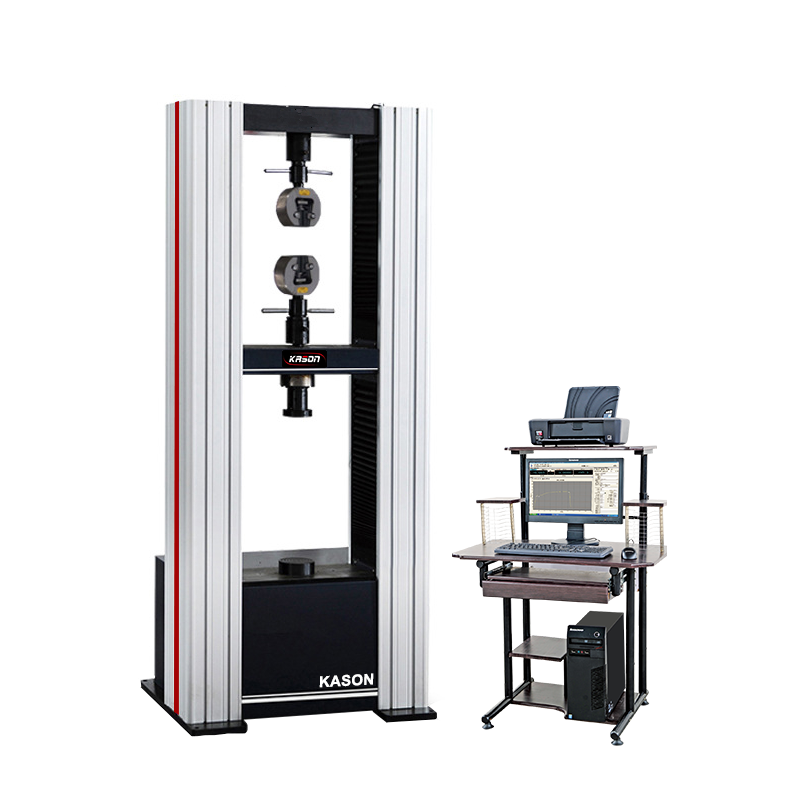

ETM Series Computer Servo Type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.

Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

Specifications:

Model	ETM105
Load Capacity	100kN
Force Accuracy	0.4% to 100%
Load Capacity	±1%/0.5%
Force Resolution	1/30,0000
Position Resolution	0,01mm
Position Accuracy	±1%
Test speed	0.01-500mm/min
Crosshead Guidance	Precision Ball Screw with Independent Ground; Stainless Steel Guide Rods
Tensile test space	650mm 1100mm including fixture
Compression test space	600mm
Effective testing width	450mm
Power	AC220V, 50/60Hz
