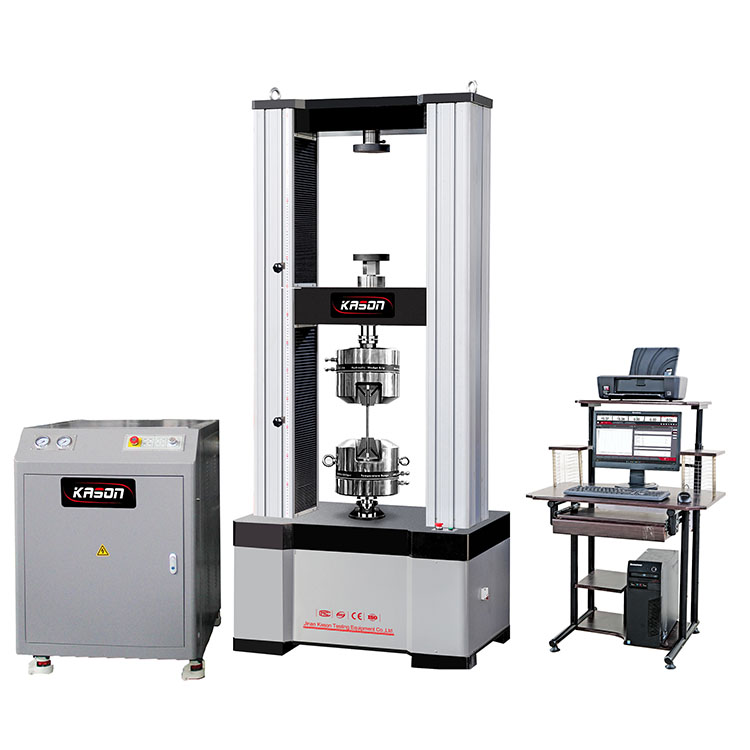

50kN 100kN 5Ton 10Ton Electronic Universal testing machine with pneumatic side action grip
Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,
GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specifications
| Model | ETM504 | ETM105 |
| Max. Load(kN) | 50 | 100 |
| Load accuracy | Class 0.5 | Class 0.5 |
| Load range | 0.2%～100%F·S | 0.2%～100%F·S |
| Load resolution | 1/300000 | |
| Resolution of deformation | 0.04um | 0.04um |
| Accuracy of displacement | Within±0.5%of indicating load | |
| Resolution of displacement | 0.01mm | |
| Test speed(mm/min) | 0.05-500 stepless arbitrary setting | |
| Speed accuracy | within ±1% / ±0.5% of set speed | |
| E-Tensile space(mm) | 770 | 650 |
| E-Compression space(mm) | 1000 | 1000 |
| D-Test width(mm) | 450 | 550 |
| F-Beam travel distance(mm) | 1100 | 1100 |
| Power supply | AC220V±10%，50Hz/60Hz (can be customized) | |
