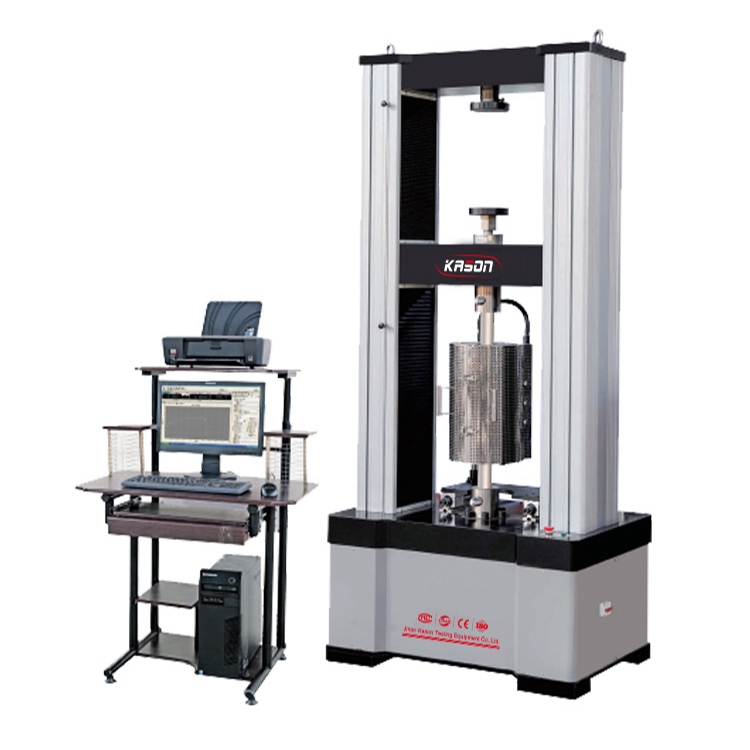

astm c512 30kn accelerated high temperature computer control creep testing machine

Application:

This creep test machine is applicable to the field of quality measurement, aerospace, iron and steel metallurgy, machinery manufacturing, electronic appliances, automobile production, civilian nuclear energy, civil aviation, universities, research institutes, commodity inspection, arbitration and other industries.
Test Standard:
JB/T9373-1999 tensile creep test machine technology specifications
JJG276 high temperature creep and durable test machine
HB5151-1996 metal high temperature tensile creep test method
HB5150-1996 metal high temperature tensile durable test method
ASTM E139 Standard test methods for conducting creep, creep-rupture and stressrupture test
ISO 204 Metallic materials uniaxial creep testing in tension.

ISO/R 206 Creep stress rupture testing of steel at elevated temperature.

Parameters:

Load frame
Model	RDJ-10/20	RDJ-50	RDJ-100	RDJ-200	RDJ-300
Max. Load force(kN)	10月20日	50	100	200	300
Accuracy	≤0.5％ ; 0.5 class
Deformation accuracy	<±0.5% of reading
Loading Speed	0.05～50mm/min
Voltage	220V/380V±10%；50Hz
Furnace
Operating temperature range	300℃～1100℃
Effective Length constant length	150mm
Furnace inner dimensions	Ф90*380mm
Furnace out dimensions	Ф320*460(Can be adjusted according to user needs)
Temperature control meter	Yudian Temperature control meter
	Electric conduction Temperature control meter
	(optional)
Thermocouple	K type Even thermocouple
	S type Even thermocouple (optional)
High-temperature furnace temperature accuracy (℃)	Test temperature		temperature	temperature gradient
			fluctuation
	300～600		±5	3
	＞600～900		±4	4
	＞900～1100		±3	5
