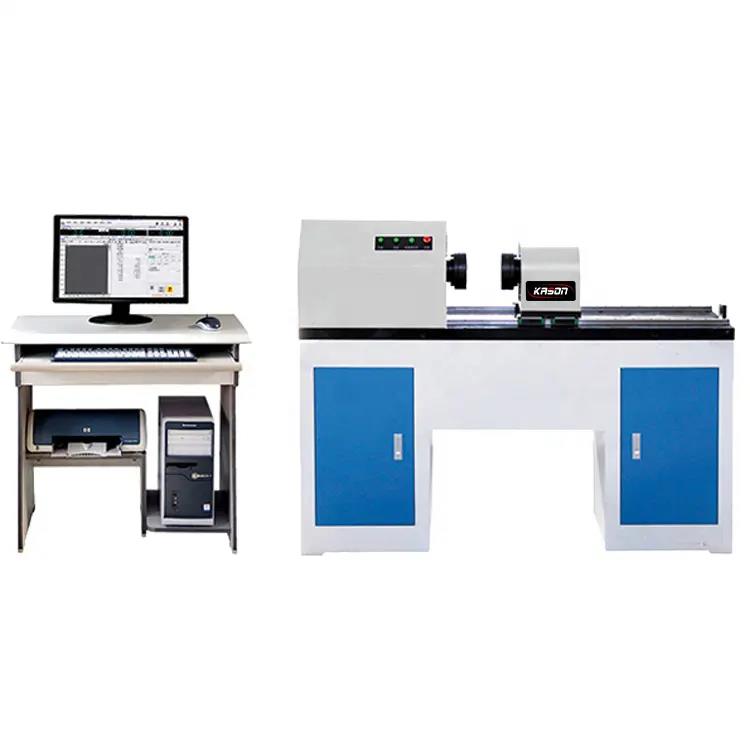

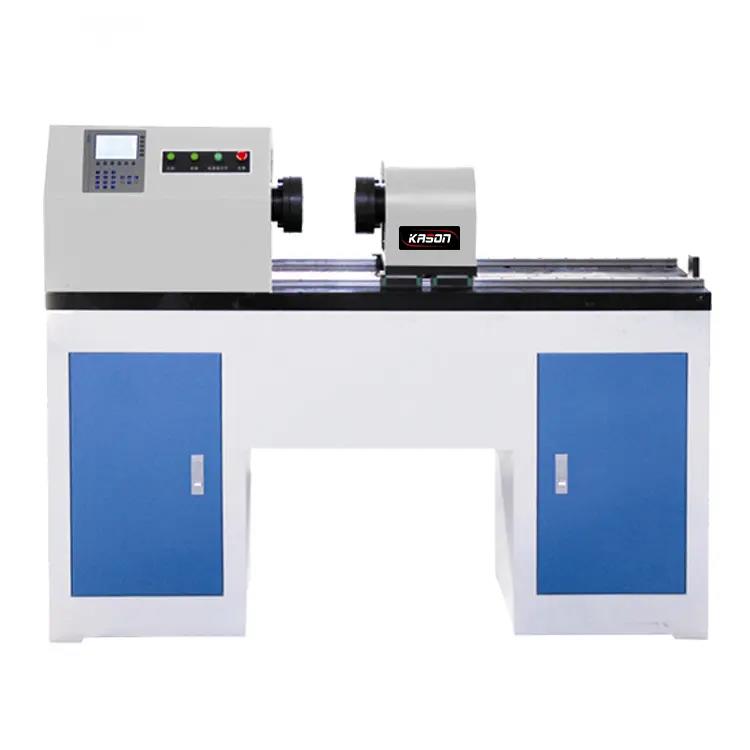

Metal Sheet Material Torsion Fatigue Testing Machine
Introduction
This series torsion testing machine is suitable for metal materials, non-metallic materials, composite materials and components of torsion performance test.Standard :
GB/T 10128-1998 《Metal room temperature torsion test method》
GB/T 10128-2007 《Metal room temperature torsion test method》
Technical parameter :
| Model | KASON-N100W | KASON-N200W | KASON-N500W | KASON-N1000W | KASON-N2000W | KASON-N3000W | KASON-N5000W | |
| Maximum Torque（N/m） | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | |
| Control Method | Constant torque and constant speed rotation, constant speed twist angle , close loop control mode | |||||||
| Machine level | 1 Class | |||||||
| Torque Test Range(F·S) | 2%～100%F·S | |||||||
| Torque value relative error(%) | ≤±1 | |||||||
| Torque display resolution | 1/20000 | |||||||
| Torsional Angle Test Range(F·S) | 2%～100% | |||||||
| Torsional Angle value relative error (%) | Better than ±0.5 | |||||||
| Torsional Angle display resolution | 1/20000 | |||||||
| intersection angle value relative error (%) | ≤±1 | |||||||
| intersection angle display resolution(°) | 0.01 | |||||||
| Max. torsion Angle | 99999° | |||||||
| Torsional angular rate control range (°/min) | 0.05-800 | |||||||
| Chuck spacing effectively (mm) | 600 | |||||||
| Power Supply | 220V±10%，50Hz | |||||||
