Overview:

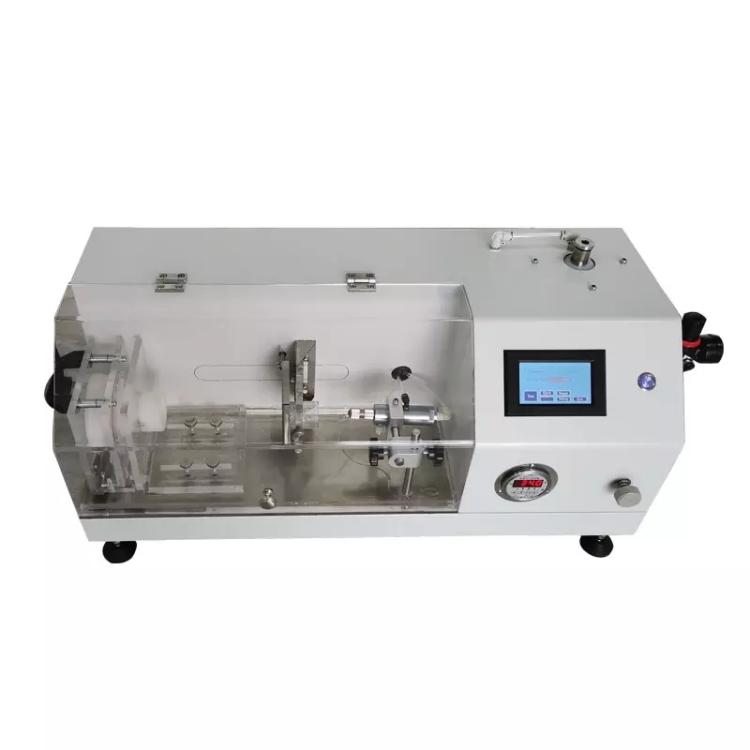

The Masks Synthetic Blood Penetration Tester is used to determine the resistance of medical protective masks to penetration by synthetic blood at different test pressures,and can also be used to determine the resistance to blood penetration of other coating materials.
When doing test, face mask is held in target area, synthetic blood is pressurized so that certain amount of blood is ejected horizontally on to the specimen. The resistance to blood penetration of the specimen is then tested.
Standard Complaint
GB 19083-2010 Technical requirements of medical face masks - Anti-penetration property of 5.5 synthetic blood.
YY/T 0691-2008 Clothing for protection against infectious agents-Medical face masks - Test method for resistance against penetration by synthetic blood (fixed volume, horizontally projected)
YY 0469-2011 Technical requirements of medical face masks– Blood penetration test apparatus.
ISO 22609:2004 Clothing for protection against infectious agents - Medical face masks - Test method for resistance against penetration by synthetic blood (fixed volume, horizontally projected)
ASTM F1862-07 Standard Test Method for Resistance of Medical Face Masks to Penetration by Synthetic Blood (Horizontal Projection of Fixed Volume at a Know Velocity)
Specification:
Injection distance |
300mm~305mm, adjustable |
Nozzle diameter |
0.84mm |
Nozzle length |
12.7mm |
Jet velocity |
450cm/s,550cm/s,635cm/s |
Pressure range |
0 ~ 0.04 MPa |
Specimen size |
75*75mm |
Observe time |
Settable |
Language |
English-Chinese Switchable |
Power supply |
AC220V 50Hz |
Dimension |
650*640*500mm |
Weight |
35Kg |
Features:
1. Touch screen operation, equipped with metal keys, sensitive operation, not easy to damage.
2. A sample fixation device with a projection of the test target area can simulate the actual use of the mask, leave the test target area without damaging the sample, and distribute the synthetic blood in the sample target area.
3. Specially designed constant pressure injection device can spray a certain volume of synthetic blood in a controlled time.
4. The injection speed corresponding to the simulated average blood pressure of 10.6kPa, 16kPa and 21.3kPa can be directly selected to carry out the test, without manual adjustment, and the test is convenient.
5. The fixed target plate can block the high pressure along the part of the jet liquid flow, and only allow the steady flow part to spray on the sample, which increases the accuracy and repeatability of the liquid velocity sprayed on the sample.
6. Adopting 32-bit ARM processor, the injection time is accurate
