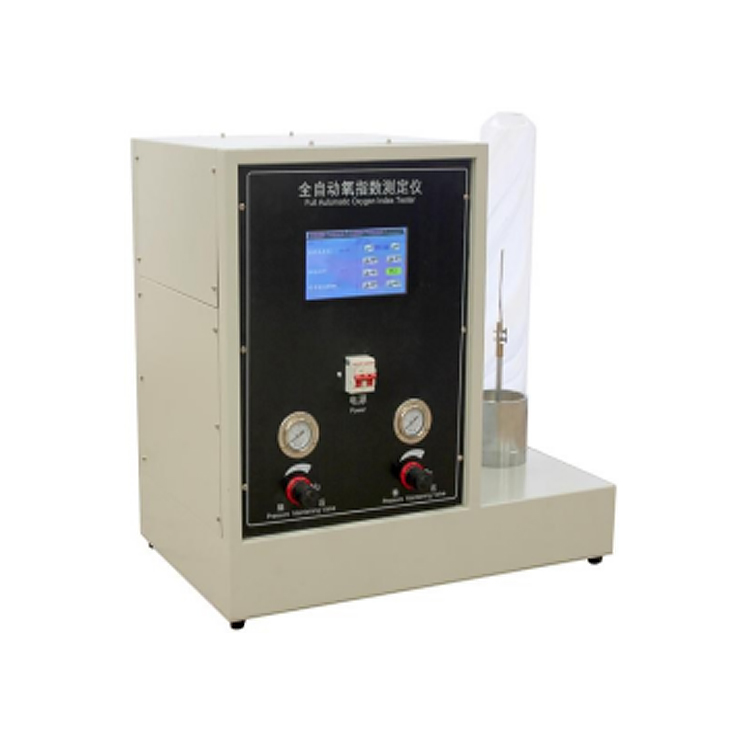

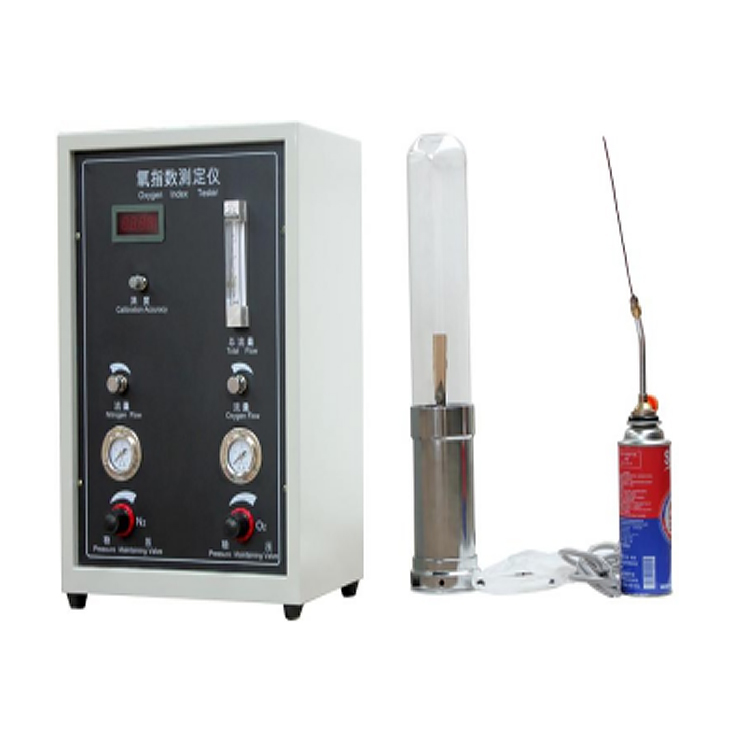

This Oxygen index tester applies to the burning of plastics, rubber, foam and other materials performance test, its results are accurate, the reproducibility is good. Research, test equipment essential for the production of flame retardant material.
Standards:ASTM D 2863, ISO 4589-2, NES 714 GB/T 5454 GB/T 10707-2008 GB/T 8924、GB/T 16581、 NB/SH/T 0815、 TB/T 2919、IEC 61144、ISO 15705、ISO 4589-2.
Specifications:
Model | KS-YZ3 | KS-YZ5 |
Control Method | Keyboard | Touch Screen |
Oxygen concentration range | 0~100% | |
Accuracy Class | 0.4 | 0.2 |
Gas flow range | 0~10L/min(adjustable) | 0~20L/min(adjustable) |
Oxygen concentration accuracy | ±0.1% | |
Combustion cylinder | Height: 400mm | Height: 500mm |
Flow Velocity in Combustion Cylinder | 40mm±2mm/s | |
Response time | <5s | |
Input pressure | 0.2~0.3Mpa | 0.2~0.4Mpa |
Gas of Ignition system | Propane or Butane | |
Flame Height | 5~60mm adjustable | |
Flowmeter range | 1-15L/min adjustable | 1-20L/min adjustable |
Working pressure of N2 and O2 | 0.1~0.15Mpa | |
Power supply | AC220V 50Hz 1Phase | |
Dimensions | 660mm×350mm×610mm | |
Package Weight | 55kg |
