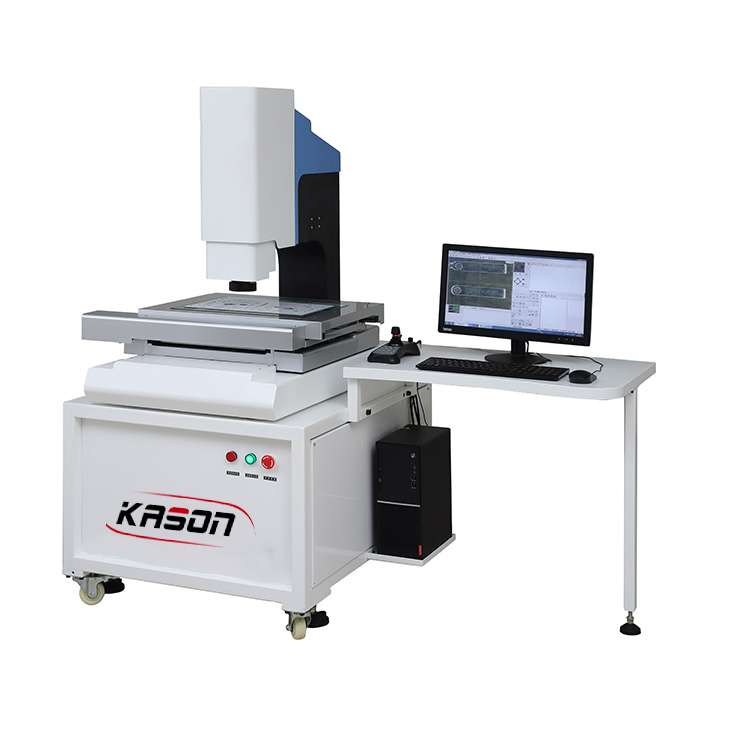

Product name:Economical CNC Video Measuring System VMS Series
Product categories:CNC Video Measuring System
Abstract:
VMS Series, an universal, economical type CNC Video Measuring System developed by KASON.
1. use
The VMS series is a universal CNC video measurement system developed by the KASON. Widely used in mechanical, electronic, aerospace, automotive, military, mold and other industries of precision automatic measurement
II.feature
1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines
and instruments through the USB line and S-Video cable.
3. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
4. With my company-specific CNC software has greatly enhanced the efficiency measurement.
5. Grade 00 JINANQING granite base, column, high stability.
Model |
VMS-3020E |
VMS-4030E |
VMS-5040E |
|||
|
Work Table Size(mm) |
500*330 |
606*466 |
706*566 |
||
Glass Table Size(mm) |
350*280 |
450*350 |
550*450 |
|||
X,Y Stroke(mm) |
300*200 |
400*300 |
500*400 |
|||
Z Stroke |
150(Focus) |
150(Focus) |
150(Focus) |
|||
Resolution |
1/0.5 μm |
|||||
Accuracy E1* |
Ex, y ≤ (3.0+L/200) μm |
|||||
Accuracy E2* |
Exy ≤ (3.5+L/300) μm |
|||||
Instrument Weight (kg) |
270 |
450 |
500 |
|||
Instrument Dimension (mm) |
670*660*950 |
720*950*1020 |
800*1040*1020 |
|||
|
Three-axis Max. Velocity |
X,Y: 400mm/s Z: 200mm/s |
||||
Three-axis Positioning Accuracy |
0.001 mm |
|||||
|
Camera |
TEO™ Color 1 / 2 "CCD Camera |
||||
Zoom Lens |
Manual zoom lens |
|||||
Zoom Lens Magnification |
0.7-4.5X |
|||||
Video Magnification |
20-128X |
|||||
FOV |
11.1-1.7mm |
|||||
Power Consumption |
600W |
|||||
Instrument Accessories |
1X Tube (standard) |
0.5X Tube (optional) |
WD |
|||
Zoom Lens |
0.7-4.5X |
0.7-4.5X |
|
|||
Add Lens |
Video Magnification |
FOV |
Video Magnification |
FOV |
||
0.5X(option) |
10X-64X |
22-3.4 |
5X-32X |
44-6.8 |
175 |
|
1.0X(standard) |
20X-128X |
11.1-1.7 |
10X-64X |
22-3.4 |
92 |
|
2.0X(option) |
40X-256X |
5.5-0.9 |
20X-128X |
11.1-1.7 |
36 |
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice.
