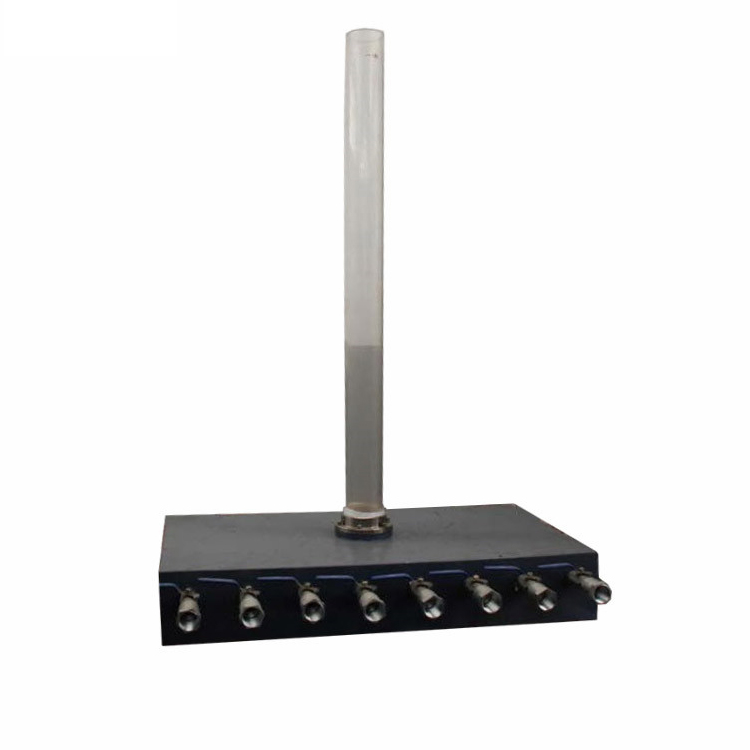

GSS-1000 Series Optical Fiber Cable Water Penetration Testing Machine is intended to establish the ability of a fiber optic cable to block water migration
TechnicalParameters

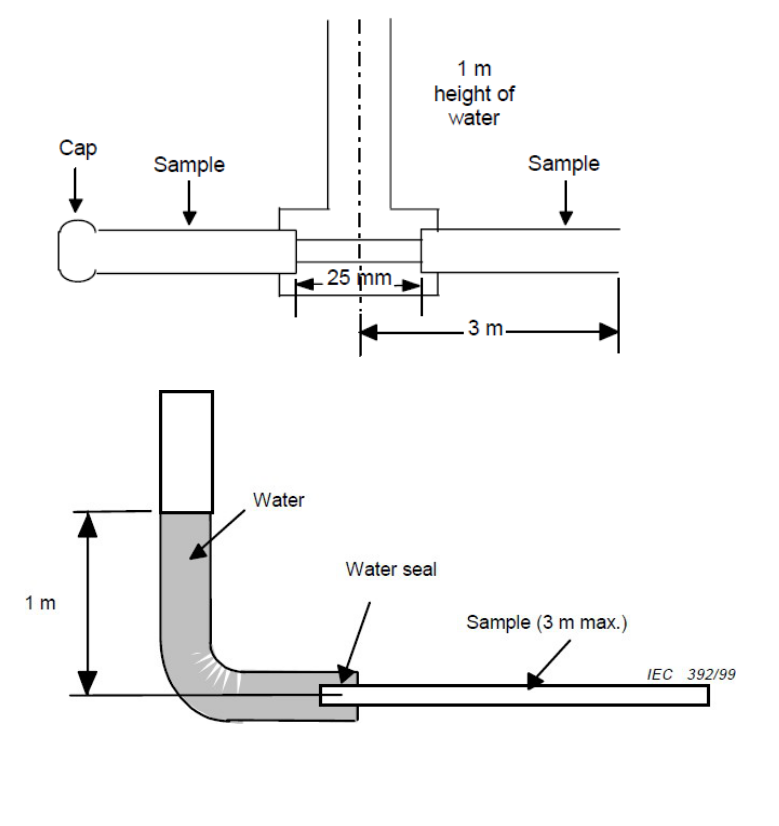

1.1. The water column height: φ80mm Plexiglas tube to the upper part of the outlet
groove axis 1000mm;
1.2. Water settings: 8 cables do water penetration test at the same time
1.3. Outlet diameter: inner diameter φ30mm;
1.4. Tanks using stainless steel welding, 8 bronze ball valve to control the water.
